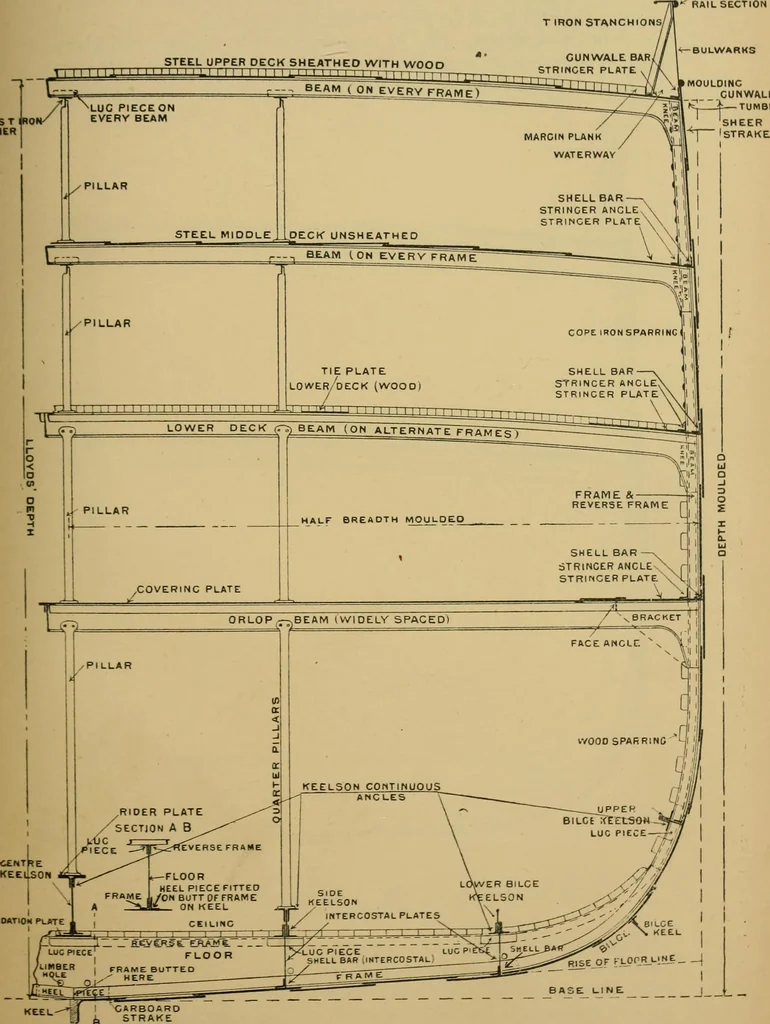

he classification societiesprovide alternative modes of arriving at the required structural strength, theowner has the option, under the guidance and advice of his naval architect,of making the choice of the system most suited to his requirements. A ship is a girder composed of a host of smaller… … fWmOATION PLATE KEEL--^ CARBOAROh STRAKE Fig. 9.—Midship Section of Merchant Steamer, 44 STEEL SHIPS. is free, to some extent, to exercise his choice. This can probably be bestillustrated by the aid of the diagrams figs. 10, 11, and 12. With Hold Beams.—Fig. 10 is a midship section of the vessel…
