Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 587

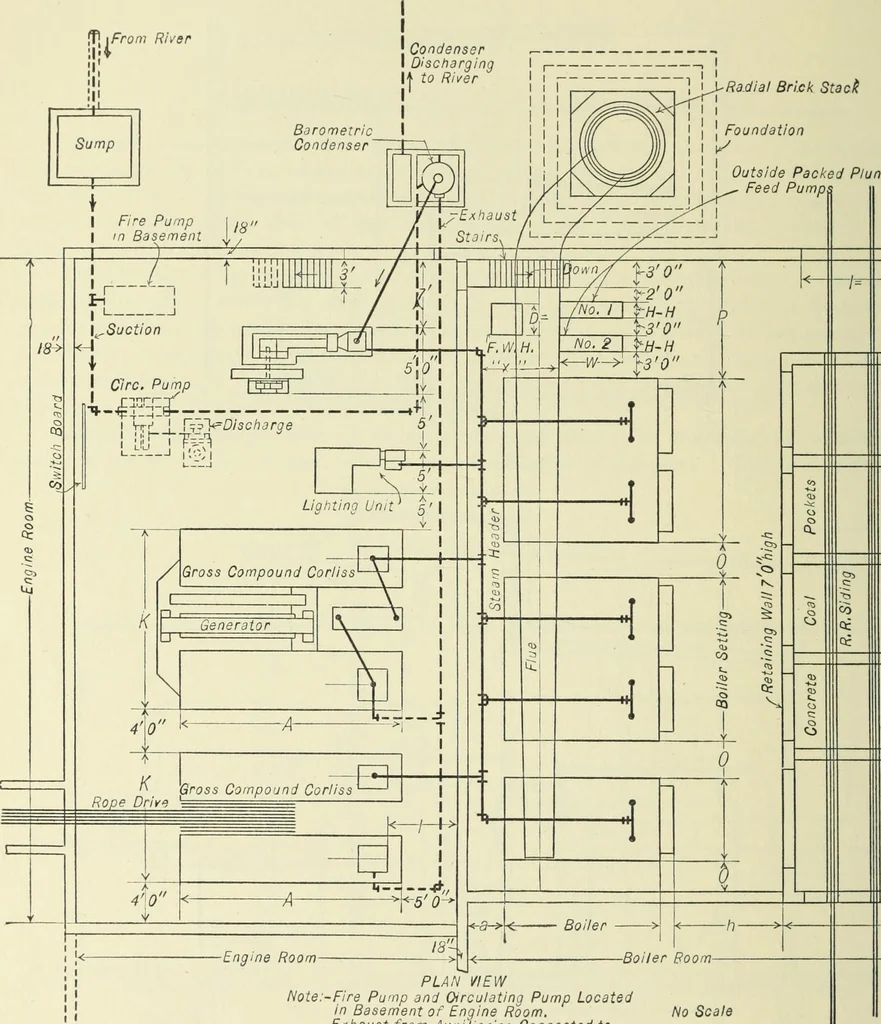

plants is to depress theboiler-room floor approximately 10 feet below the grade line and run the railroad siding on a 562 POWER PLANTS AND REFRIGERATION trestle either through the boiler room or on the other side of the outside wall, the coal beingdumped directly on the boiler-room floor. When the… … -Boiler Boom- PLAN VIEWNote:-Fire Pump and Oirculating Pump Locatedin Basement of Engine Room.Exhaust from Auxiliaries Connected toFeed Water Heater. No Scale Fig. 4—Preliminahy Sketch, Showing Arrangement of Boiler- and Engine-Room. cent grade. In this case the height of the trestle is sometimes…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
