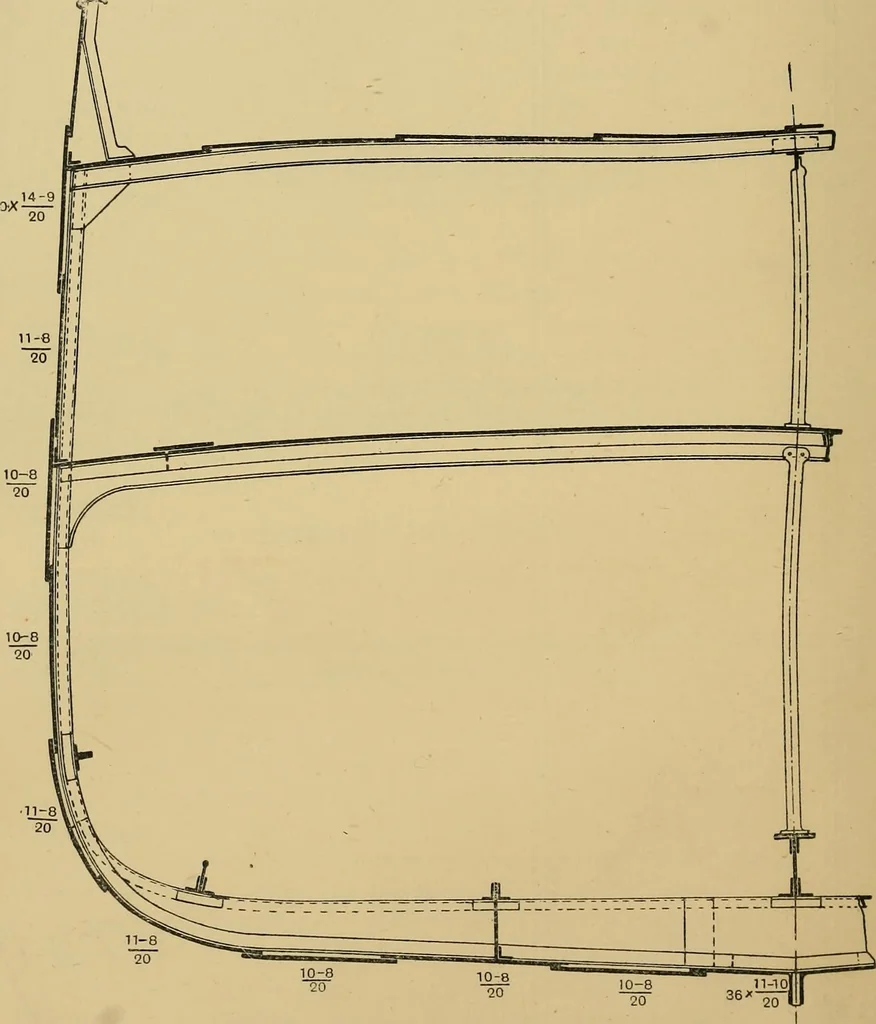

fWmOATION PLATE KEEL--^ CARBOAROh STRAKE Fig. 9.—Midship Section of Merchant Steamer, 44 STEEL SHIPS. is free, to some extent, to exercise his choice. This can probably be bestillustrated by the aid of the diagrams figs. 10, 11, and 12. With Hold Beams.—Fig. 10 is a midship section of the vessel… … Fig. 10.—Midship Section of Vessel requiring two Tiers of Beamswith ordinary Frames and Floors. from the top of the keel to the top of the upper deck beams at centre withthe normal amount of camber, this vessel requires two tiers of beams.But while the beams in the upper tier are placed on every…
