Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 296

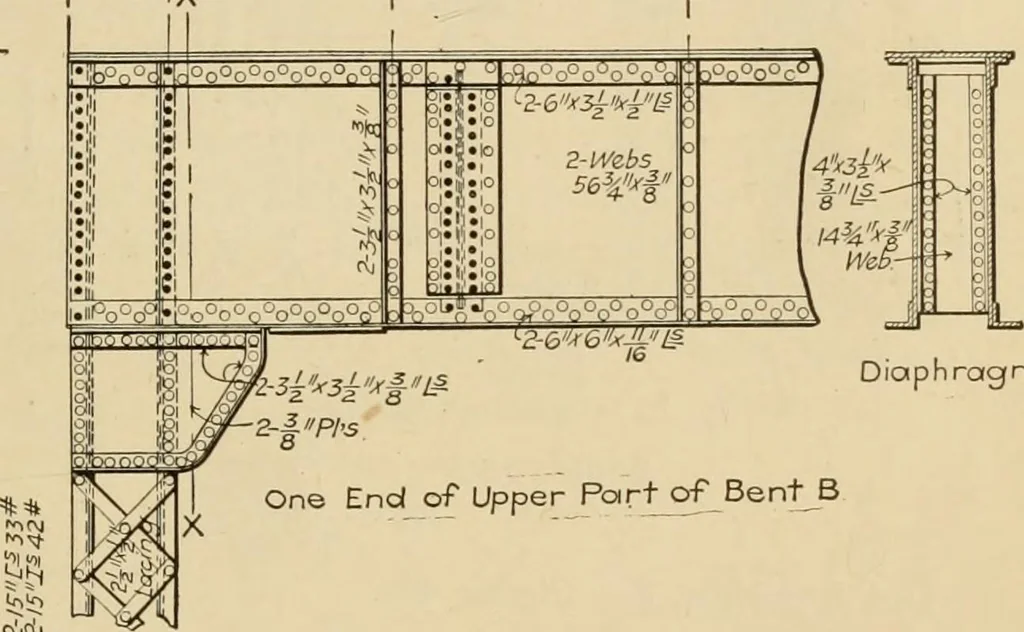

hownin the end sections. The top flange has a uniform sectionthroughout, which is composed of four 8 X 8 X y^^-in. angleswithout cover plates. The bottom chord has a maximum cross-section of two 8 X 8 X lo^- ^g^ss and three i6-in. coverplates aggregating if in. in thickness. The web plates aremade… … Diaphragnn One End of Upper Part of Bent B Transverse Bent. at the bottom flange, where longer horizontal splice plates areused, as shown in the detail. The horizontal flanges of theupper and lower top flange angles are braced by vertical anglesabout 2 ft. apart, which are riveted to the webs and…
