Steel ships, their construction and maintenance : a manual for shipbuilders, ship superintendents, students, and marine engineers (1901)
Walton, Thomas · London : Charles Griffin & Co. ; Philadelphia : Lippincott · leaf 67

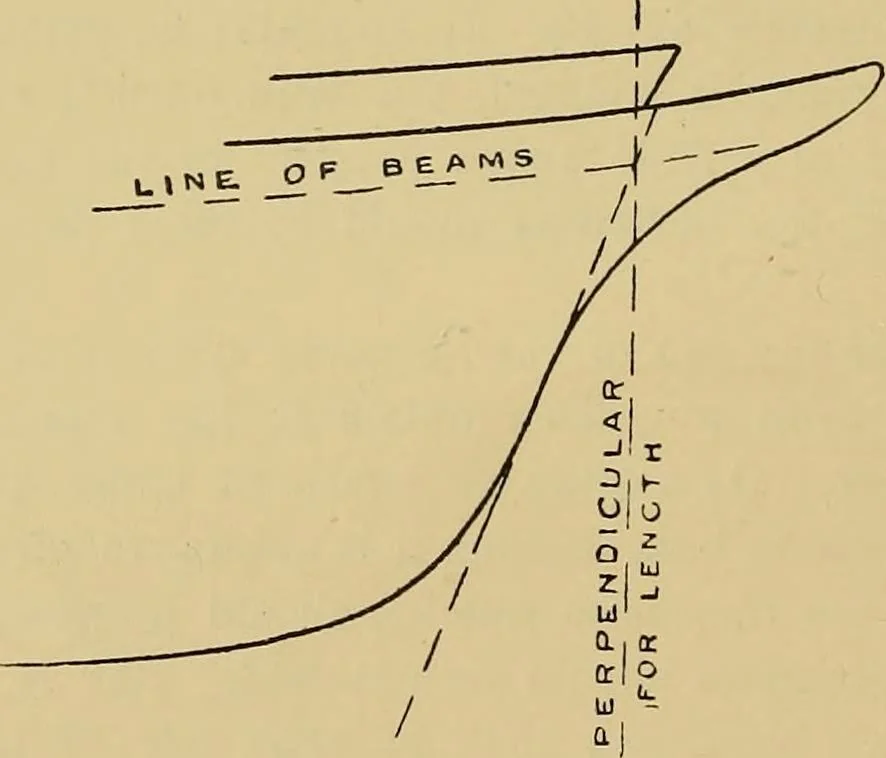

readth of the vessel at each deck regulates the size of thebeams for each respective deck. The depth of the vessel regulates the number of tiers of beams, andthe number of stringers. The 2nd numeral, both alone and in conjunctionwith the proportion of length to depth, regulates all the… … Fig. 13.—Length between Perpendiculars. of beams may be dispensed with by making compensation in some formor other, the 1st numeral is obtained hy deducting 7 from the sum of thehalf girth, half moulded breadth and depth; and the 2nd numeral bymultiplying the 1st numeral thus obtained by the length…
Naval architecture · Ships, Iron and steel
