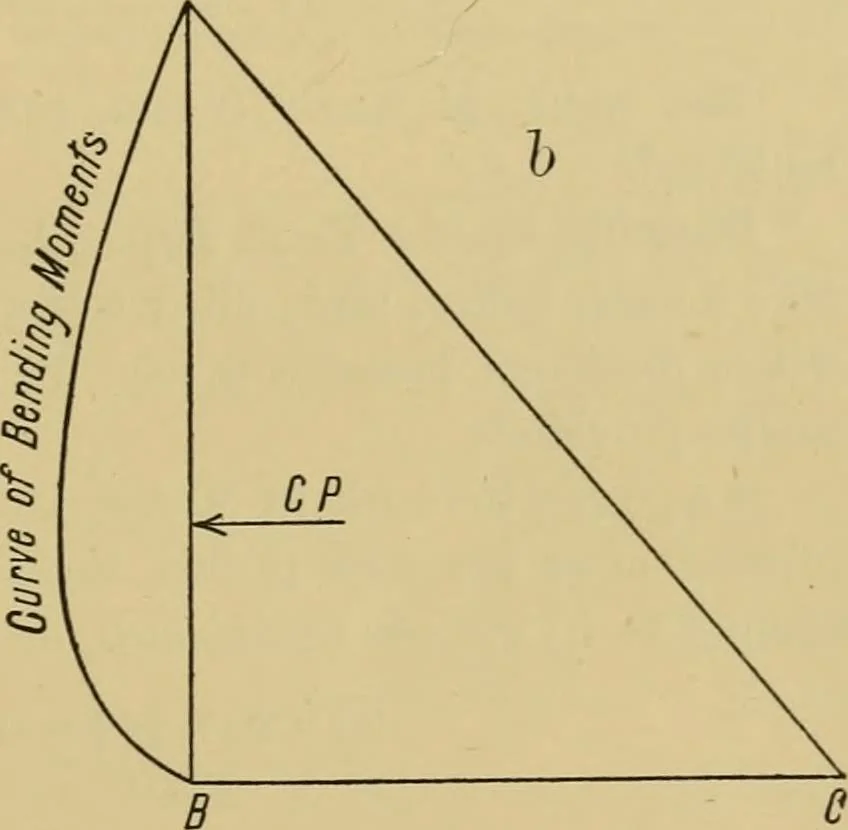

e height from the base, hence the centre ofpressure is situated 4 ft. from the bottom of the bulkhead. The shearingstresses, on the other hand, increase with depth, and therefore reach amaximum at the lowest depth, or, in other words, at the bottom of thebulkhead. Theoreticallj, the structural… … Fig. 19.—Pressure upon Watertight Bulkhead. and be again reduced towards the bottom. Similarly, structural strengtharranged horizontally should be distributed in the same manner. In actualpractice, however, as shown in Chapter VII., theoretical deductions oftenrequire modification. It will be…
