Steel ships, their construction and maintenance : a manual for shipbuilders, ship superintendents, students, and marine engineers (1901)
Walton, Thomas · London : Charles Griffin & Co. ; Philadelphia : Lippincott · leaf 81

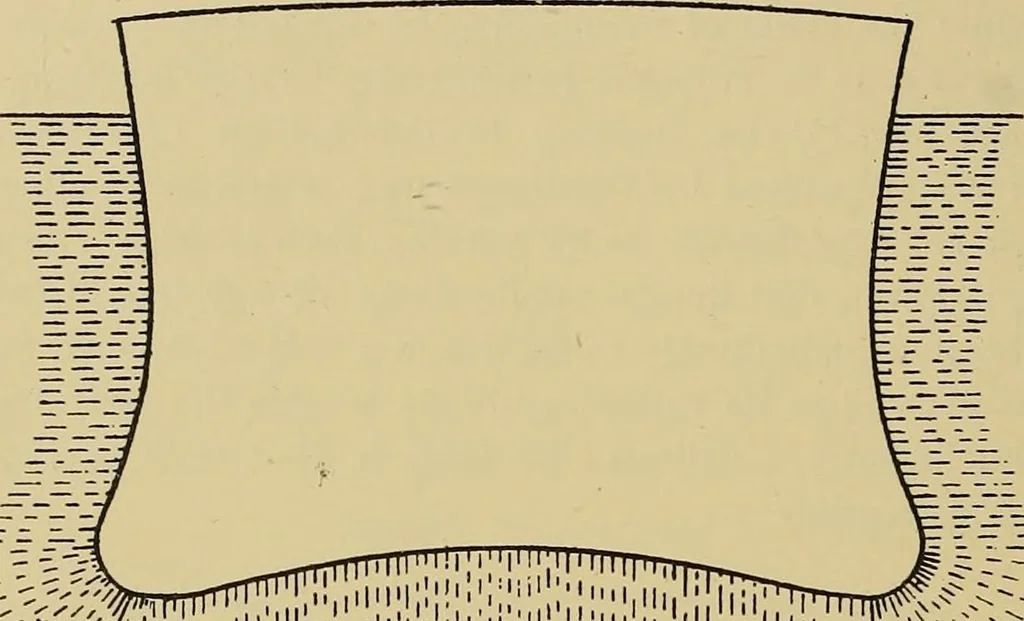

floor plates placed vertically(usually on every frame), which are further assisted by the keelsons, and bybeing tied to the decks by means of the pillars, numbering at least one inthe breadth. 62 STEEL SHIPS. In fig. 22 we see the same transverse section of the vessel subject tothe same water… … Ilii,;:mil M.r.v^ Fig. 21.—Tendency to Transverse Deformation due to Water Pressures. boilers, and bunkers (especially in a light ship). The tendency is to elon-gate the vessel vertically, and to cause the insufficiently supported bottomto droop; while the tendency for the topsides to contract…
Naval architecture · Ships, Iron and steel
Internet Archive · University of Connecticut Library · Public Domain Mark 1.0. Free to use for anything.
