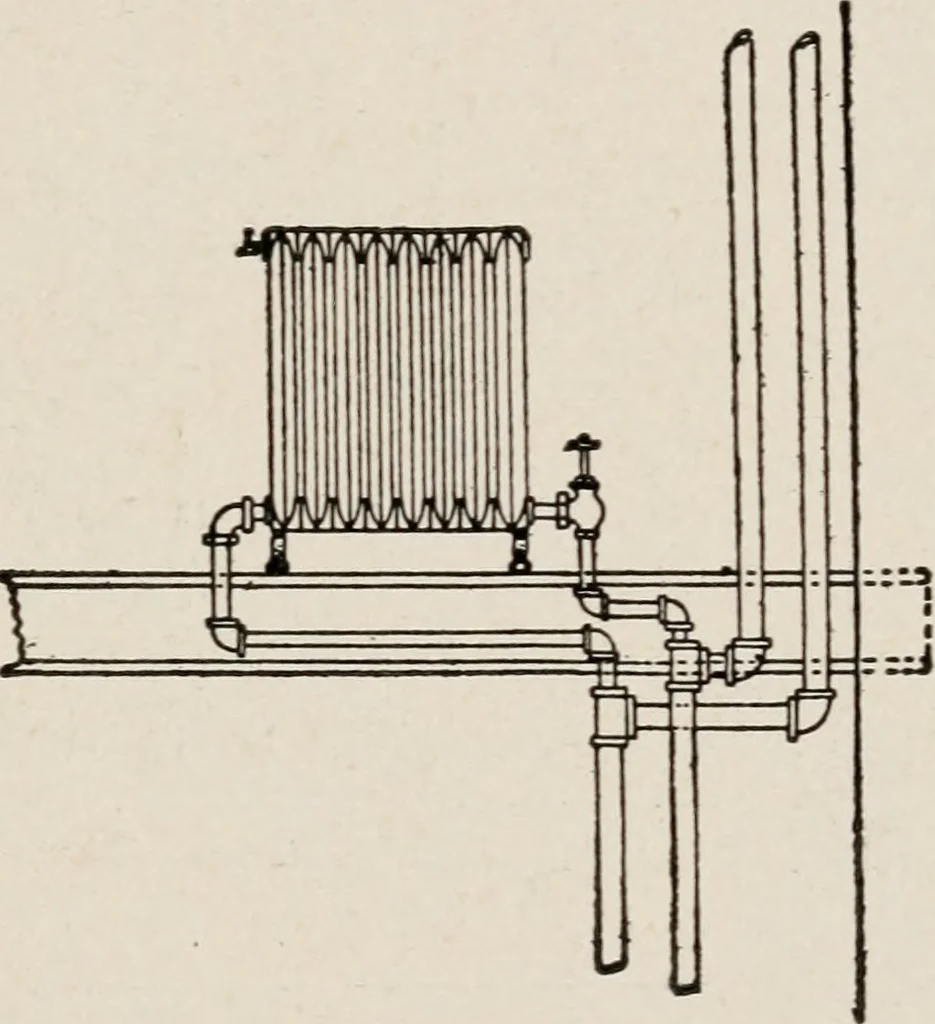

nnected between the flow and return itwould correspond with the usual arrangement of incandescentelectric lamps connected in parallel. Where two or more heat-ing appliances are connected between the flow and return, insuch a manner that the water flows through them consecu-tively, the arrangement… … FIG. 6. CONNECTIONS OF RADIATOR TO A HOT-WATER SYSTEM WITH TWO-PIPE DISTRIBUTION. lamps employed in street lighting, from a Brush arc machine.In this system the flow pipe is taken to the highest part of theservice, say to the highest deck, or a little above, if possible, inthe funnel casing, and is…
