Cold storage, heating and ventilating on board ship (1911)
Walker, Sydney Ferris · New York : Van Nostrand · leaf 218

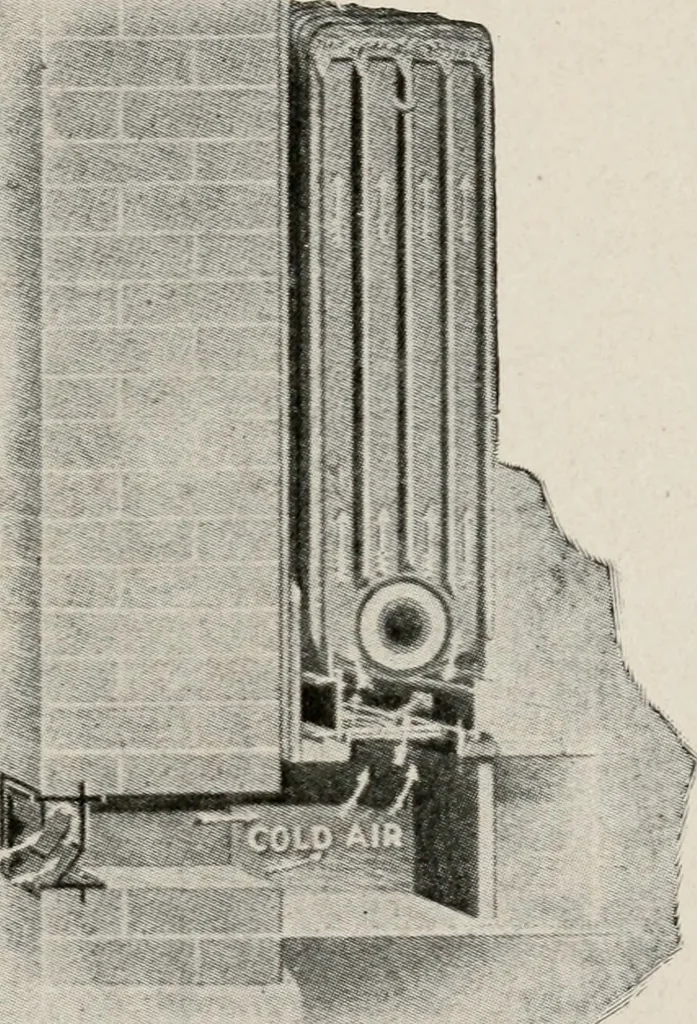

building;under a window is a favorite position. Holes are made in thewall, fitted with gratings of various forms, arranged so that HEATING THE AIR BY MEANS OF RADIATORS. 209 the quantity of air passing through them can be regulated;and the air entering the room through these gratings is causedto… … FIG. 52. RADIATOR ON SHORE HEATING AIR DRAWN FROM OUTSIDE. NATIONAL RADIATOR COMPANY. specially fitted, as shown in Fig. 52, with a plate on the innerside of the radiator tubes, which acts as a baffle to the air; andthe air is obliged to pass over the full vertical and horizontallength of the…
Ships -- Heating and ventilation · Cold storage on shipboard
