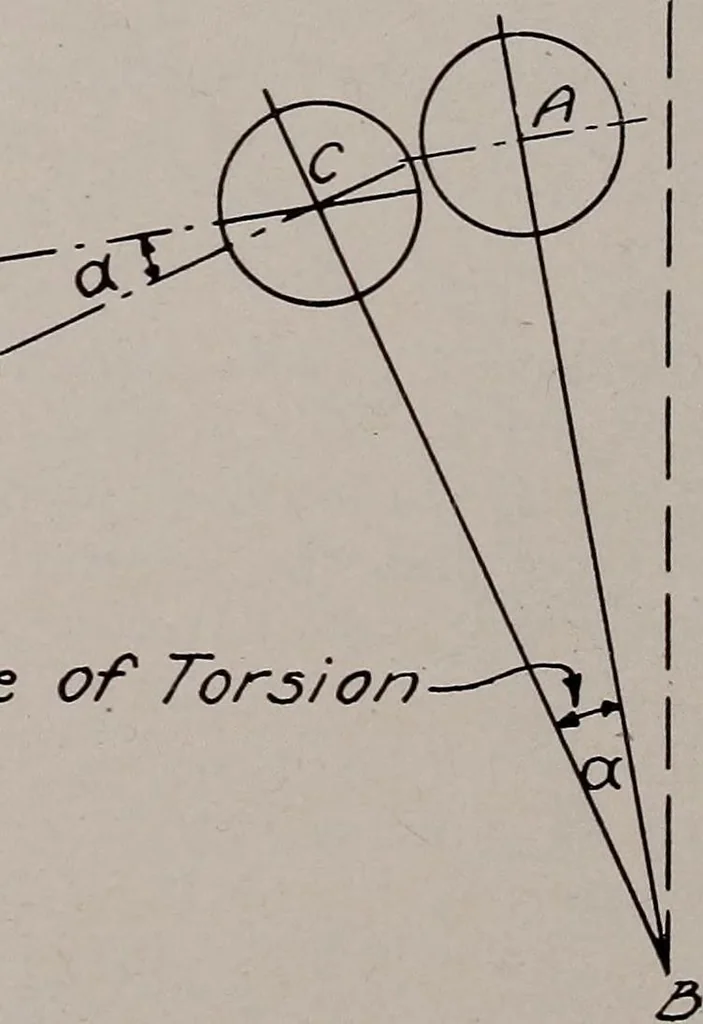

/3ng/e of Tors/on or Lag Fig. 119. Angle of Lag Between Front and Rear Control Sticks … Ang/e of Torsion Fig. 120. Relation Between Angle of Lag and Torsion194 Art. 140. Torque Tube Carrying Elevator Masts and Rear Stick point A, over the arc AC, the tube connecting points D and C must bedeflected a distance, AC. The force applied at C that is required to dothis produces bending in…
