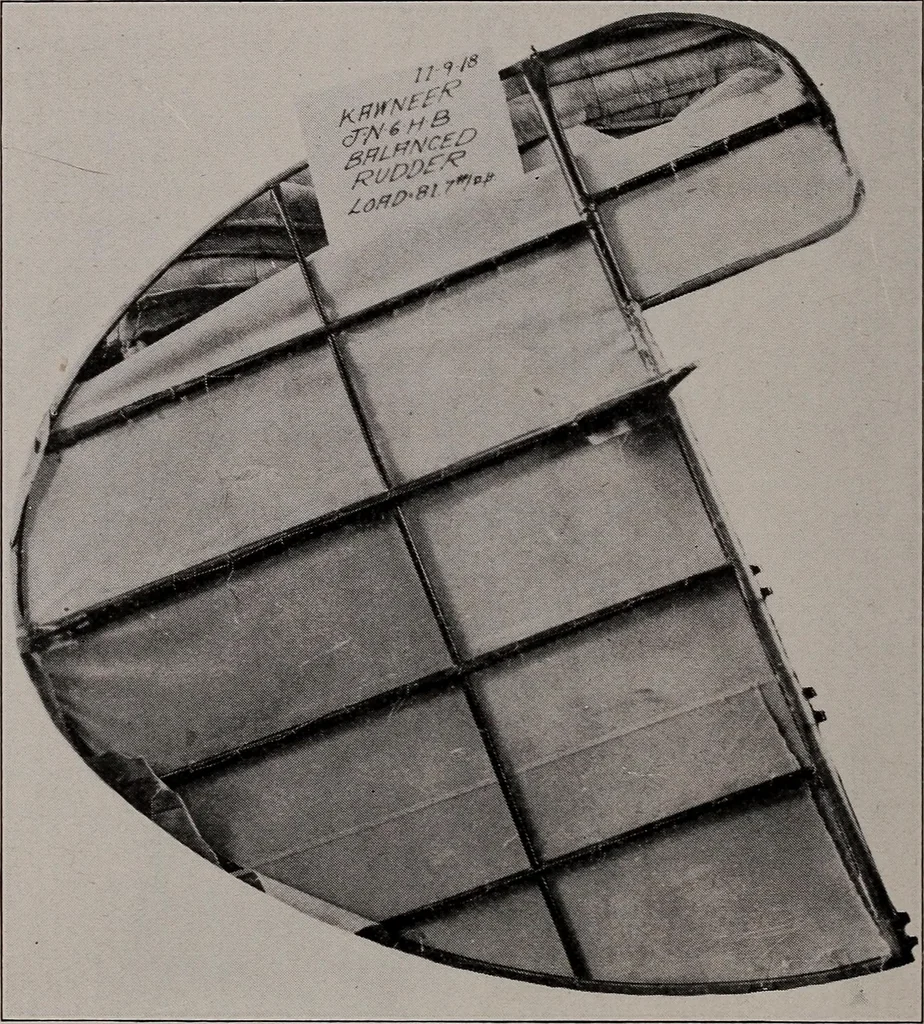

K 219 Control Surfaces Art. 147 ting the main tube and rib weakened them materially. A much moresatisfactory joint is shown in Fig. 148. It will be observed from Fig. 147that where a rib of smaller diameter than the torque tube is joined tothe latter the rib is flattened so that its long axis is… … Fig. 147. Rudder of Tubular Construction Conne c f/on Str/p ■
