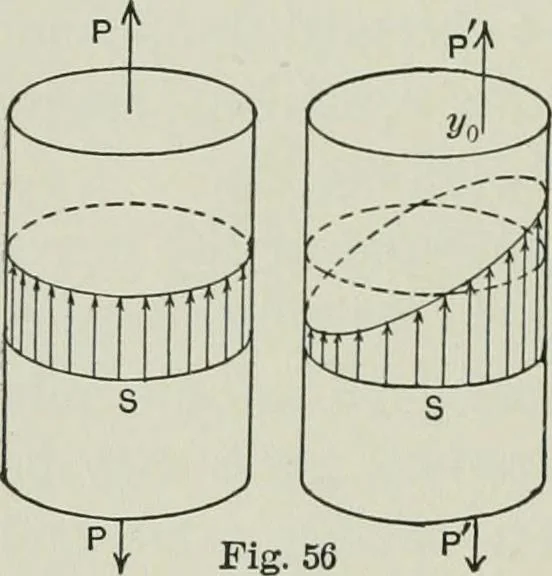

refore vary uniformly in the direction of the deviation of the action hne of P from the centre, (Fig. 56), and be constant on hues at right angles to that deviation. The force, P^ acting at a distance, 30) from the axis of the tie is equivalent to the same force, P, at the centre and a moment, Pjq.… … It- s The latter is zero at the centre of gravity of the section and amaximum at the edge toward which the load deviates, where it is PIECES UNDER TENSION. 129 Myi Pyoji h- Sf^ Note that jt is the mean stress, which is always the existing stressat the centre of gravity of the cross-section.…
