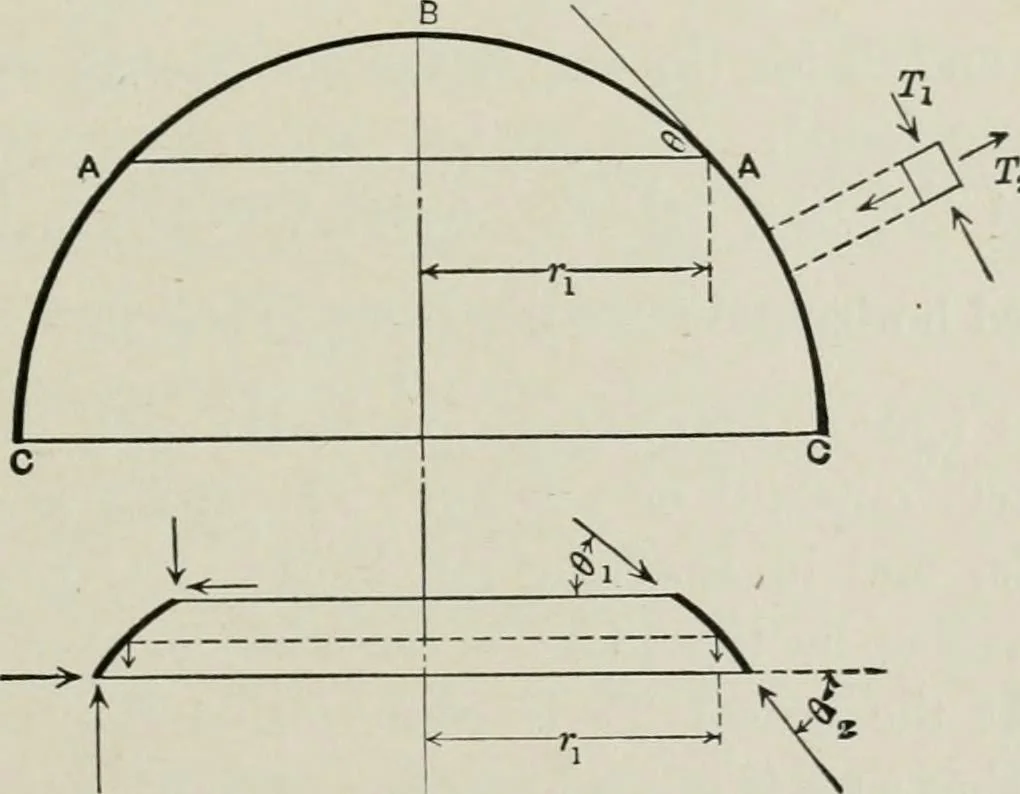

ecd. When p\ is compressive, p2 is tensile and vke versa. Example.—Conical piston, Fig. 92. ^=24 in., radius of rod=3 in.,0 = 69°. Thickness for ^1=17 in. is 1.5 in.; for ri = 8 in. is 1.9 in.Steam pressure== 100 lb. per sq. in. Sec ^=2.79. For ri= 17 in., px =100(242-172) 2.79^(2X17X1.5) = 1,570… … Fig. 93 207. Dome.—A dome subjected to vertical forces symmetri-cally placed around its axis, such as its own weight, may be treatedas follows: C B C of Fig. 93 represents a meridian section of a 2i8 STRUCTURAL MECHANICS. dome, a hemisphere as shown, but the results to be deducedare true for any…
