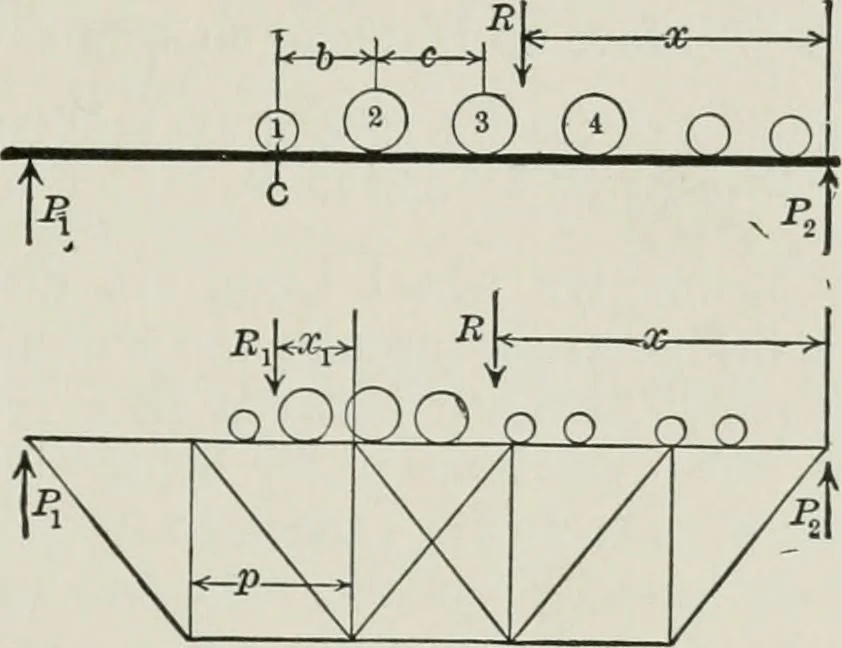

mof all loads on the span when Wi is at C, and x the distance fromthe centre of gravity of the loads to the right point of support BEAMS. 51 B. The shear at C will be Pi = Rx-^l. If the train moves tothe left a distance b, the space between Wi and W2, so thatW2 has just reached C, the shear at C… … Fig. 19 increased by moving up PF2, ii Rb^l+k> Wi, or (as k can often beneglected) if Rj>W, or j>-y. Hence move up the next load when the average load per footon the span is greater than the load on the left divided by thedistance between Wi and W2 7?r /? W Similarly, W3 should be moved to…
