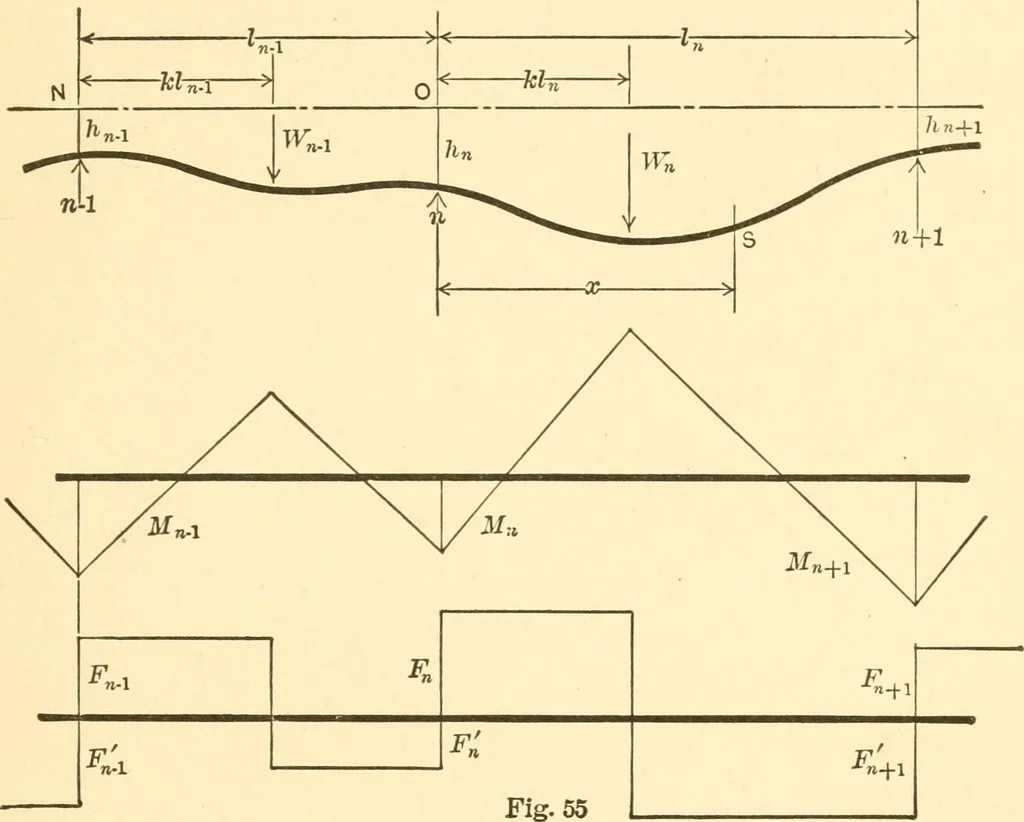

t of support m, and Fm is the shearat right of the same support; the reaction there will be the sumof Fm and —Fm or Mm+i -Mm Mm-X -Mm±m — ? 1 7 hn tm—l To get values of i and v for span ln it is necessary to writeseparate equations for the two segments into which Wn divides RESTRAINED AND… … kln on the left and between kln and x on the right. Then onthe left /kln rkln dx + Fn I xdx, . . (2) and on the right /dv %J kln The sum of (2) and (3) gives the change of slope betweenthe support n and the section S. El(-^-in)= Mn I dx + Fn I xdx - Wn I (x - kln)dx =Mnx+iFnx2-iWn(x-kln)2 (4) 124…
