Structural mechanics; comprising the strength and resistance of materials and elements of structural design (1905)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson. [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 70

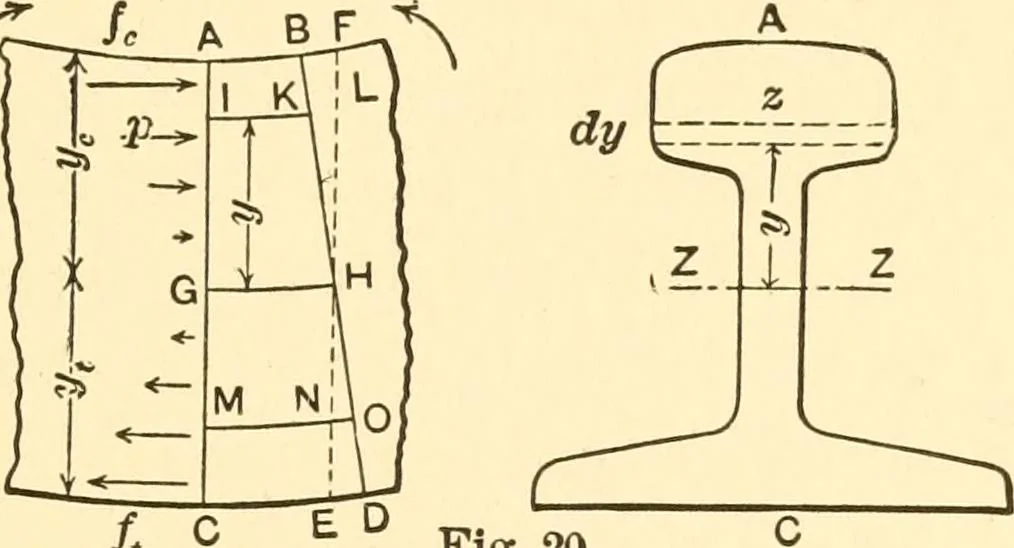

e ought there-fore to become apparent to the eye. Such a warping can beperceived in shafts, other than cylindrical, subjected to a twistingcouple, but cannot be found in beams. The lines A C and B D just referred to will be found to befarther apart at the convex side of the beam, and nearer… … ft c Fig. 20 of the fibre G H which has not changed in length, K L willrepresent the shortening which I L has undergone in its reductionto I K, and N O will represent the lengthening which M N hasexperienced in stretching to M O. The lengthening or shorten-ing of the fibres, whose length was…
