Wood, De Volson, 1832-1897 · New York, J. Wiley & Sons · leaf 76

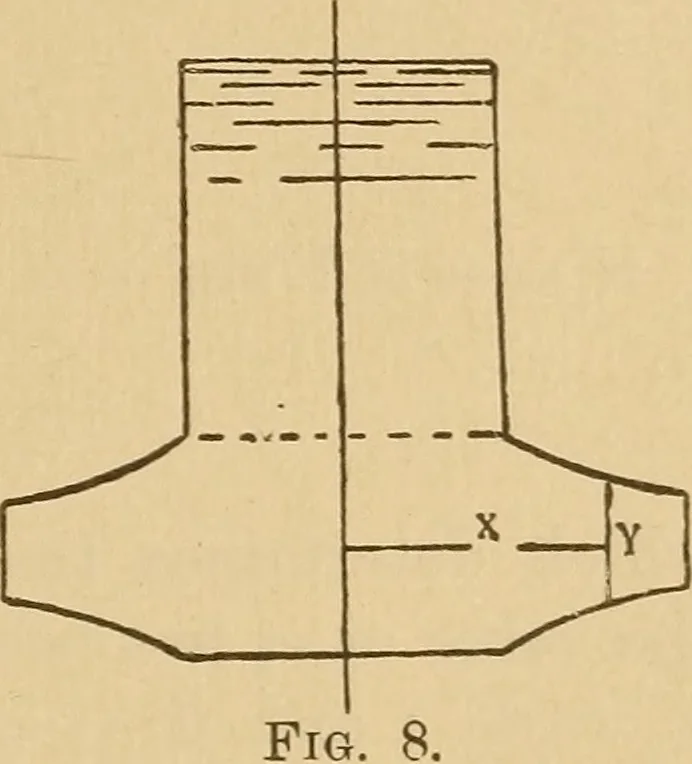

g guide bladesare of the Fourneyron type, although the wheels made by himwere outward flow. The precedinganalysis is a general solution of thisturbine. 24. Francis and Thomsons vortexwheds are inward flow wheels withguide blades. The preceding analysisis also applicable to these wheels. 25. The… … 26. Rankine Wheel.— This is a wheel of the Fourneyrontype, but Eankine having made certain modifications in its3 34 HYDRAULIC MOTORS. assumed construction it is indicated by his own name.(Fig. 8.1 It is an outflow wheel and the crowns are so made thatthe radial velocity of the water in passing…
Turbines
