The structure of fibres, yarns and fabrics : being a practical treatise for the use of all persons employed in the manufacture of textile fabrics (1891)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : The Author · leaf 72

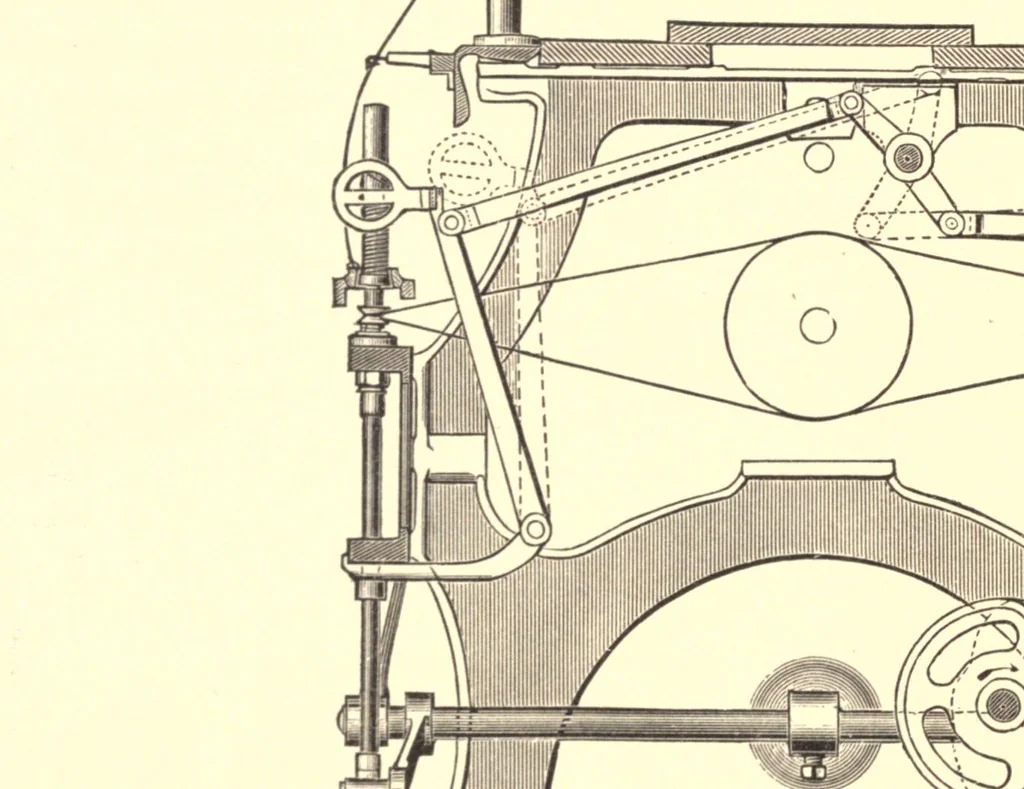

be either straight or hook-shaped. The operation of the device is as follows : To start up a frame the handle Mt is moved in direction of the arrow N, partially revolving the rod H, to which levers F, and bent arm /, are properly secured, thereby elevating all the levers .F,and with them all the… … FIG. 100. breaks any one of the fingers K, can be indi vidually raised by the operator and placed on the newly pieced sliver E. Tension-Regulating Device for Spindle-Driving Bands. — As mentioned previously, the spindles of the throstle and the ring-frame are driven (from a large tin roller…
Textile fibers · Textile fabrics
