The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)

Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 116

An illustration from The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases, 1837, leaf 116

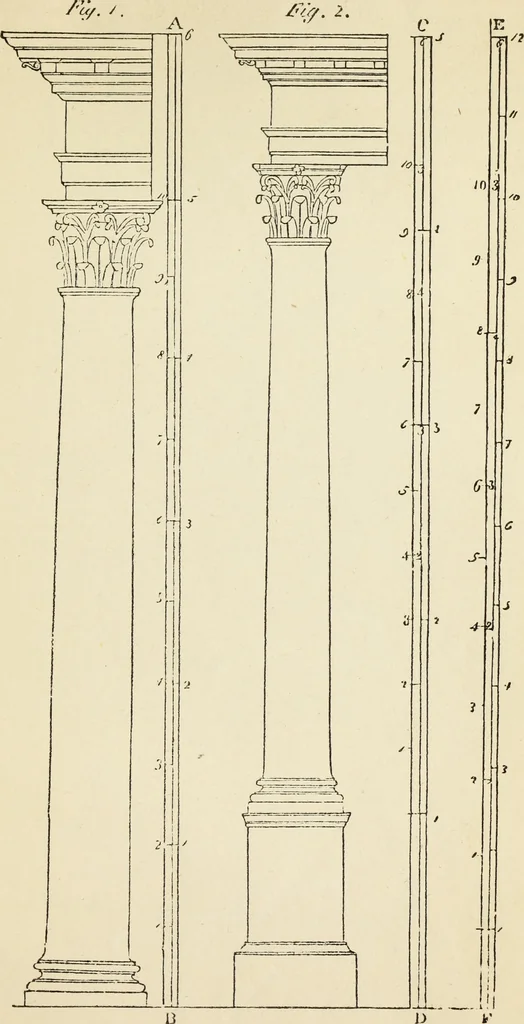

in the same manner as in the Ionic order; that is, the height A B, fig. 1. is dividedinto six equal parts, the upper one is for the height of the entablature ; one half of whichwill of course, be the diameter of the column. The rods C D, and E F, show the me-thods of setting off the order when it… … COMPOSITE CAPITAL.Plate 3 5.
