The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)

Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 44

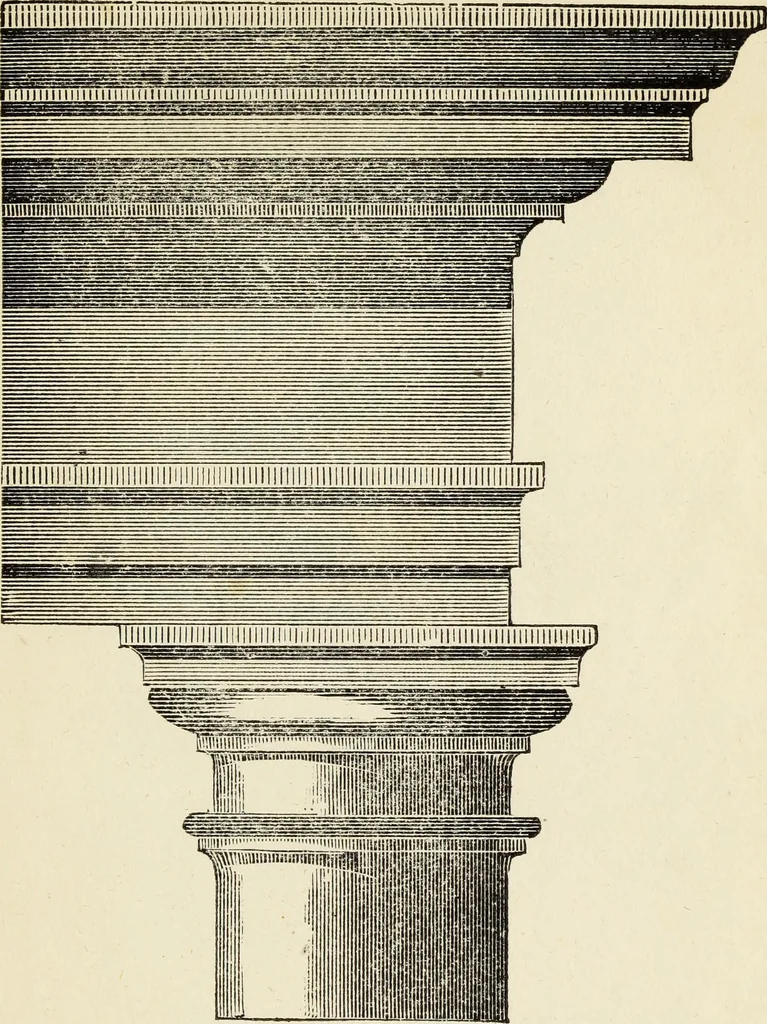

An illustration from The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases, 1837, leaf 44
e height of thirty feet: I demand the height of the pedestal, heightof the entablature, and diameter of the column. OPERATION 5) 30 6 feet, the height of the pedestal. 5) 24 height of the column and entablature. 4 . . . 9f height of the entablature. 7) 19 . . . 21 height of the column. 2 . . . 8f… … !!—)]!
