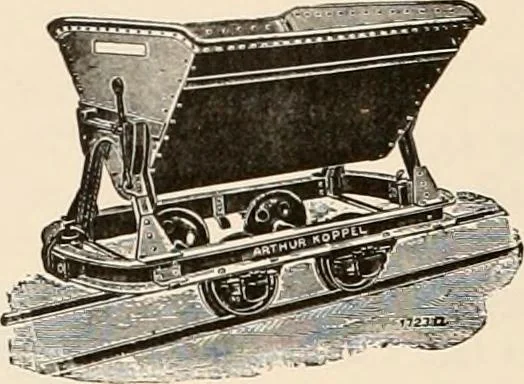

pth from bottom to top of plate, inches. . 4^ 4^ 5°/i6 5^ For all our standard cars the 40 inch turntable is large enough for 20 inch gauge,and the 44 inch one for 24 inch. If our cars are not used, we must know wheel-base todetermine diameter of turntable required. Continued on Next Page ARTHUR… … Fig. 1723. Standard Steel Side Dump Car, madeentirely of steel, dumping to both sides; contents clearthe track; cast steel wheels; capacity 18, 27, 36 and54 cubic feet; gauges 18, 19^, 21*, 24, 30 and 36 inches
