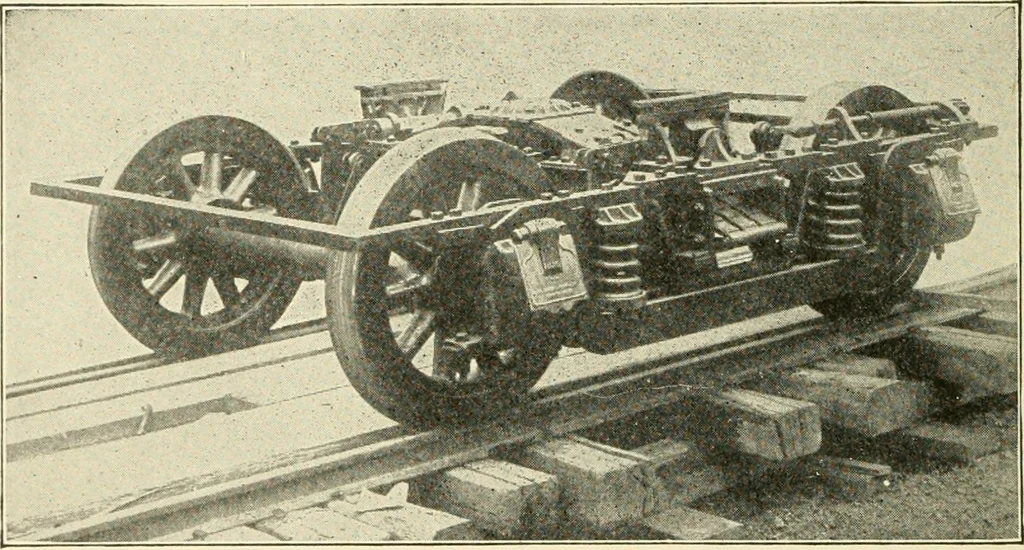

the ends of the bolster, which prevent it from striking vio-lently against the truck frame; (2) to the brake hanger bh whichsupports the brake shoe; and (3) to the pilot board which is intendedto remove obstructions from the track. A heavier type of INI. C. B. truck is shown in Fig. 13. Thistruck… … Fig. 13. Heavy M. C. B. Truck illustrated in Fig. 14. It is necessary to have a short wheel base,or distance between axle centers, when the truck has to round curvesof short radius. In such a truck there is not room for the motorsbetween the axles and consequently the motors must be turnedaround…
