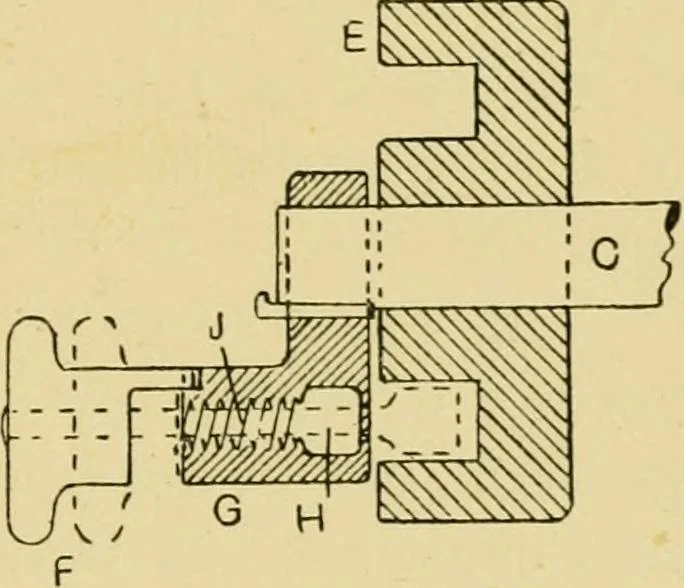

ac-count of the motion being actuated from the reversingshaft in the dobby. When the dobby is reversed by theweaver for the purpose of taking out the picks, the take-up motion is also reversed, so that the cloth is unwoundfrom the cloth beam in the same ratio as it was wound on.This makes it much… … Fig. 56. 188 TAPPET AND DOBBY LOOMS Some objections to the type of motion shown in Fig.55 are as follows: The position of the taking-up roller inrelation to the piece is such that it acts on the face of thepiece, which in certain fabrics may be damaged. Theposition of the cloth beam in relation to…
