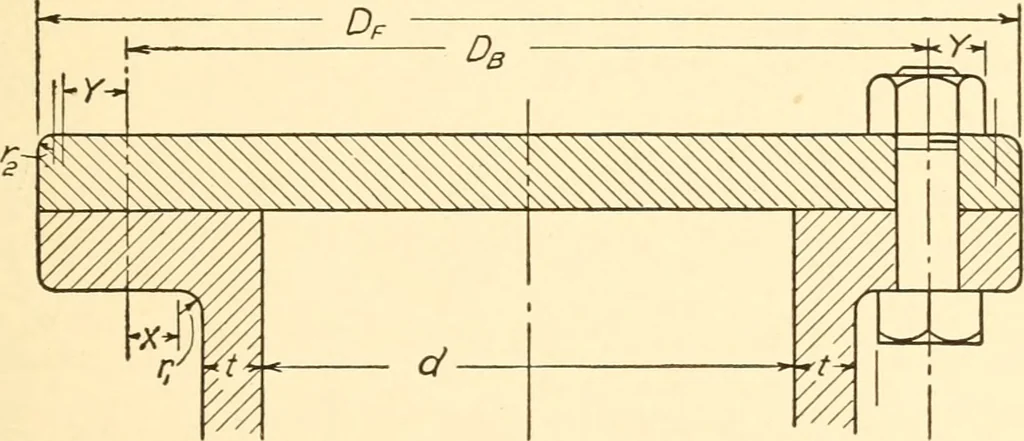

llustration, but similar casesoccur in pipe connections, the bolted feet of machines, etc. Flange Edges. — Flanges are often finished with curves so asto avoid machining. Several forms are shown in Figs. 244 to248. The radius R may be taken equal to the thickness T. Thecenters for the various radii… … /^/g. 2^9 Fig.. 2SO
