Tappet and dobby looms : their mechanism and management (1912)
Roberts, Thomas · Manchester [Greater Manchester] : Emmott & Co., Ltd. · leaf 225

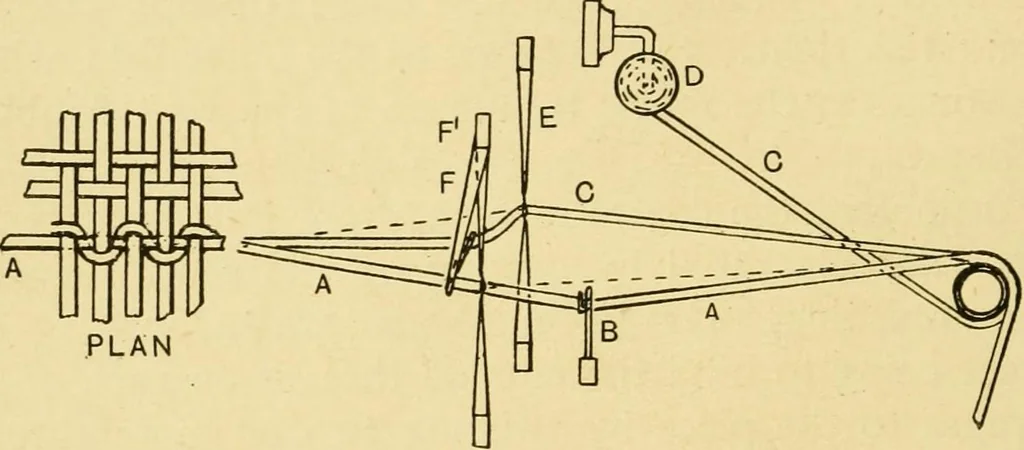

und of the fabric is working 214 TAPPET AND DOBBY LOOMS plain, one or two of the warp threads A, according totheir strength, are taken and passed through a guidewire B fixed behind the healds in such a position as tokeep the threads on a level with the bottom shed line ofwarp. These threads are not… … PLAN Fig. 64. the loom. The crossing thread is first passed througha heald on the back shaft E; the stationary thread isdrawn through the gear to the right of the heald E,which is shown lifted. The crossing thread C is nextpassed through a mail or bead attached by a loop of strongsmooth cord F to…
Looms
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
