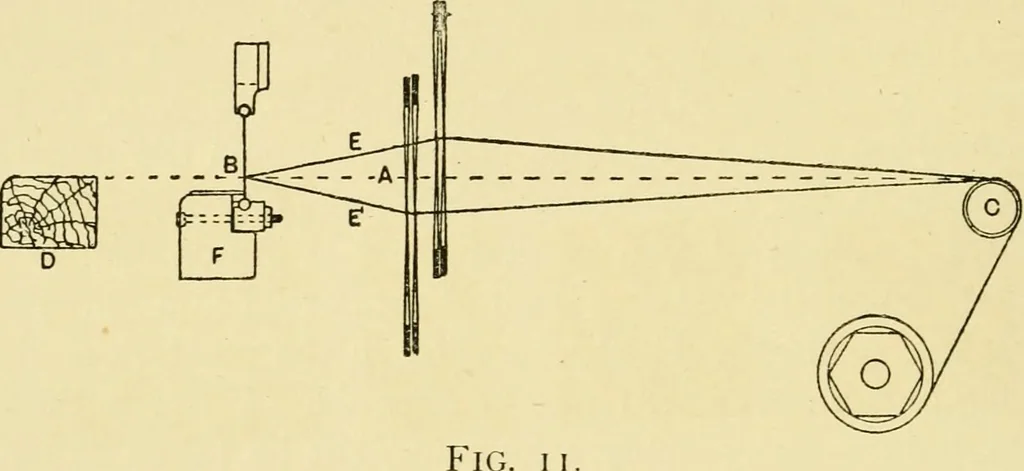

BY LOOMS C and connecting pin F, Fig. 9. When the position ofthe rocking shaft is fixed, the angle formed by the reedwith the warp hne can only be altered by a change in theposition of the back rail C, or of the breast beam D. Forgeneral and practical purposes the position of the reedwith the warp… … Fig when beating-up as to act in an opposite direction tothe pull or resistance of the warp. The direction ofthe pull is not always the same; the style of the shed-ding motion, also the design of the fabric, will determineand effect an alteration in the direction of the pull.Referring, for example,…
