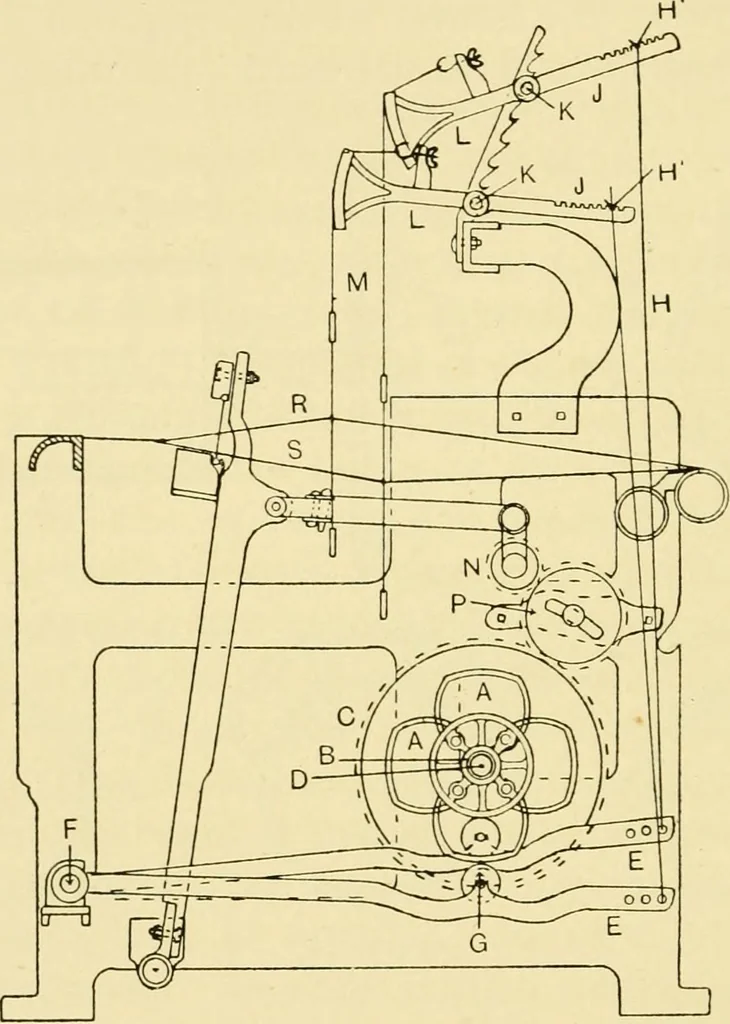

he other wheel is used for thethree and six pick patterns, the three-pick patterns beingrepeated twice, and the six-pick pattern once in a com-plete revolution of the barrel. The following par-ticulars of the driving bevel wheels and the tappet 52 TAPPET AND DOBBY LOOMS wheel would be adopted:… … Fig. 16. let it be assumed that a weave occupying five picks inthe repeat is required. There are two factors to be con-sidered. First, the barrel must be provided with a seriesof bolt holes 4th of the circumference apart, which, inaddition to those already necessary for the six and eightpick…
