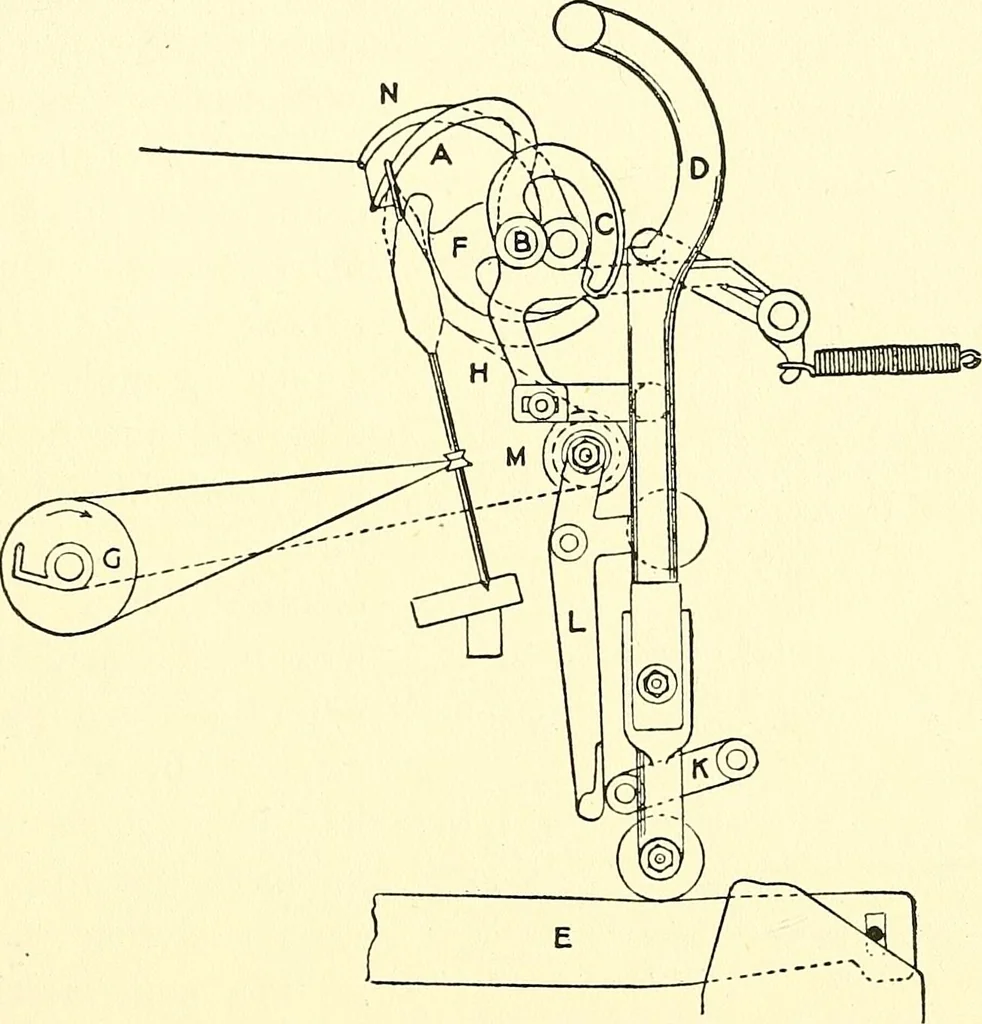

ain is effected auto-matically thus: The winding faller shaft (fig. 155) has keyed upon itthe backing-o£f finger, to one end of which the backing-off chain isfastened, the other end of the chain being joined to the backing-offsnail mounted with a ratchet clutch upon the tin roller shaft. Oneend of… … Fig. 156.—Locking of Faller previous to winding(Lettering and description the same as fig. 157, which shows subsequent motion) arm from the front of the incline grips a rod connecting with thecopping plate, so that by means of two hoops, fixed upon the con-necting rod, the incline is moved…
