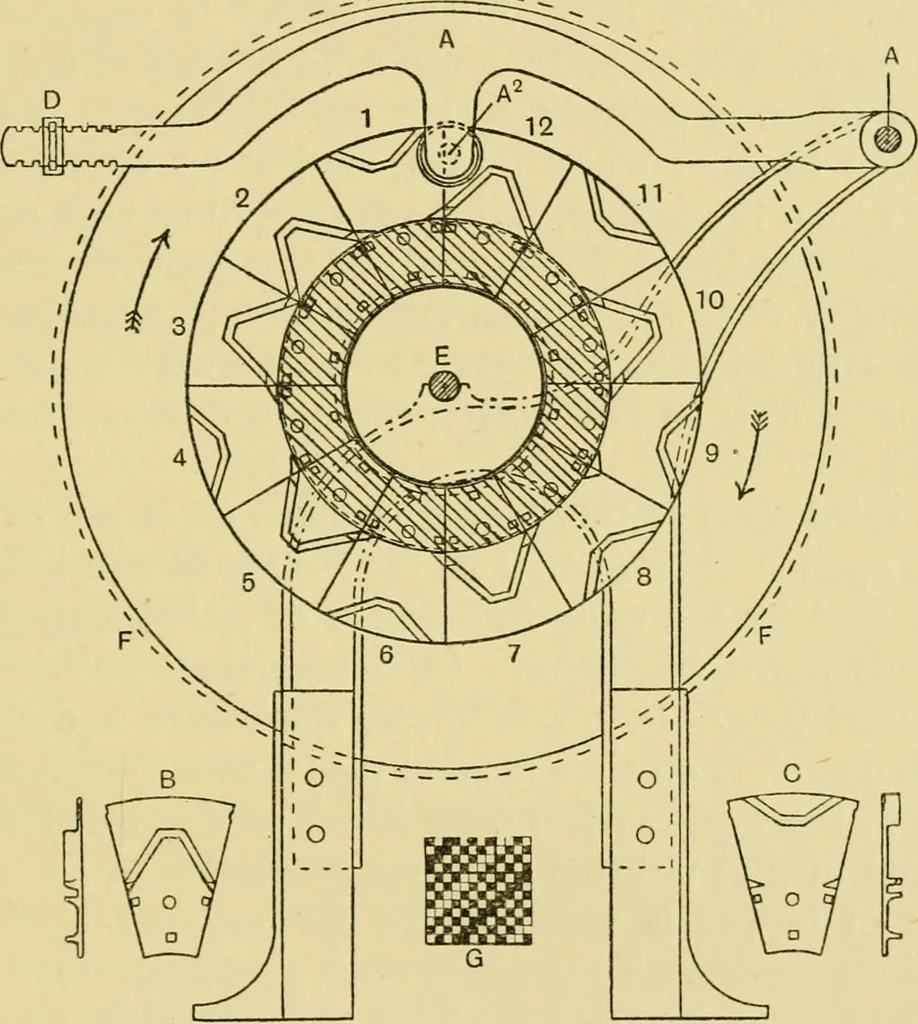

ection plates, is then placed to keepthe sections in position. The above order is repeatedfor the working of the next treadle, which controls theworking of the last thread but one in the design. This WOODCROFT TAPPET 75 process is repeated until the tappet is complete, when thebolts are screwed up… … Fig. 24. tappet constructed with 12 treadles and 12 picks to theround, and a full set of section plates—then any weavecomplete on 12 ends and picks, also weaves complete on2, 3, 4, 6 ends and picks, could be produced. For theabove reason this tappet is specially suitable to thosebranches of the…
