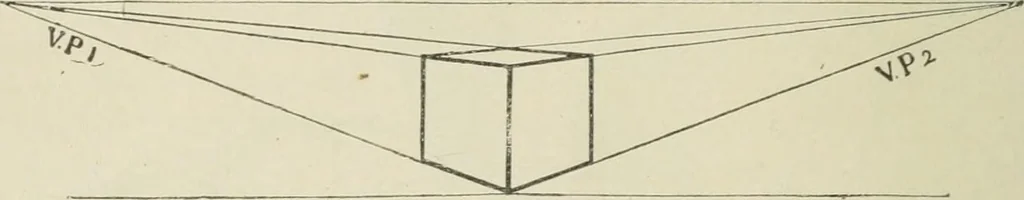

eding from the eye apipear to con- verge to a 2^oiiit on the level of the eye, and must he drawn so that,if p)roduced, they ivill vieet in a point on the level of. the eye(L. of E). 9. That 2Jarallel horizontal edges receding to the left appear to converge to a point on the level of the eye at the… … Fig. i\ 10. That for rectangular ohjects standing with side faces turned equally away, the vanishing j^oints are equidistant from the ohject. 11. That the farther vertical edges appear shorter than the nearer, and shoidd he so drawn. 12. That for rectangular ohjects standing with side faces turned…
