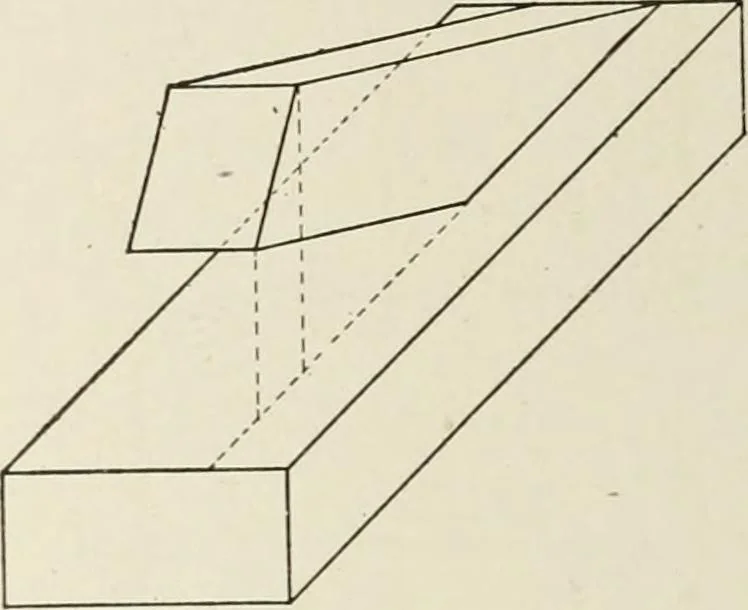

Fig. 172. Plan and Elevation ofWooden Brace Fig. 17.3. Oblique View of WoodenBrace In Fig. 173 lay off from the upper right-hand corner of the frontend a distance equal to the distance between the front edge of theinclined piece and the front edge of the bottom piece, Fig. 172. Fromthis point draw…
