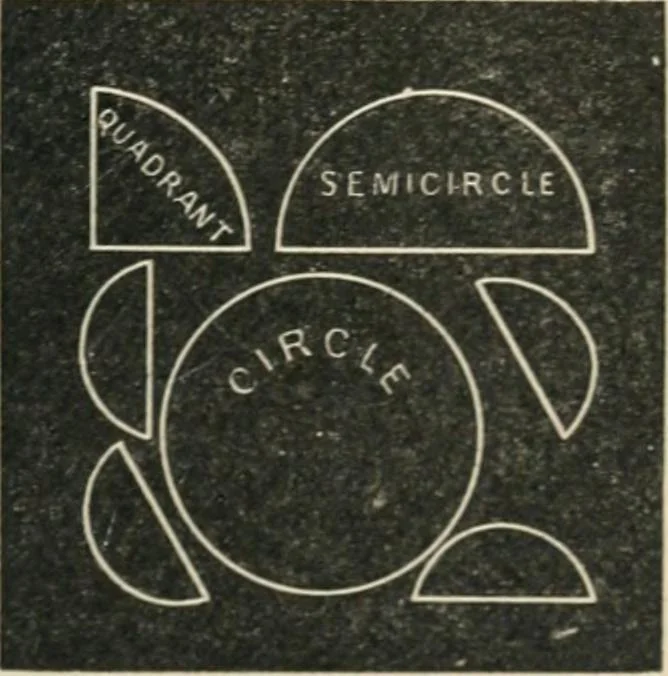

ch an inch and a half long,and mutually bisecting. Uponthese two lines, as diameters,draw the circle. The Quadrant.—In the left-hand upper corner draw a hori-zontal line one inch long. Atthe left end of this draw a per-pendicular line of the samelength. Add the curA-e, com-pleting the quadrant. See… … 110 TEACHERS MANUAL. vertical line one inch long. Add the curve, completing thesemicircle. The Segments.—Draw the segments about the circle,giving the chord, or base, of each curve a different direction. The pupils need not add the names of the diiierent parts;as, diameter, chord, &c. When it…
Drawing
