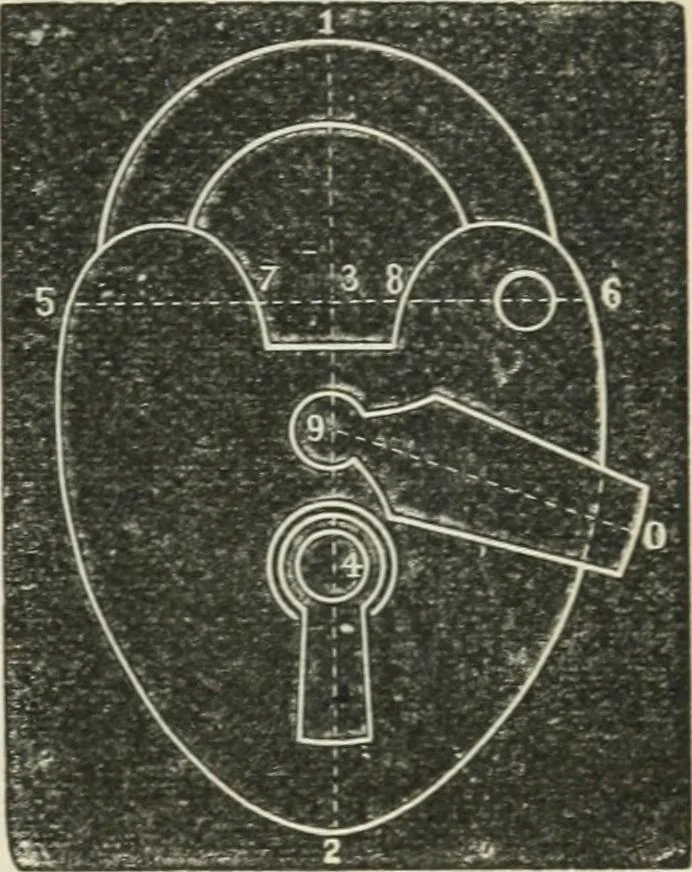

d 8. Theseare the constructional lines anddivisions. Begin the curved out-lines by drawing the longestcurve, 5 2 (5, and carry the curveabove 5 0, to pass through 7 and8, and end in a straight linebelow 5 6. Draw the haspabove 5 0, the upper line passingthrough 1. Point 9 is halfway between 3 and… … Sec if the pupils Avill draw a cover which willconceal the keyhole, the purpose for which it is made.The point 0 ought to be just below the bottomof the keyhole, if measured from 9 down the centralline towards 2. Then ask them to measure theicidtli of the cover in their drawings, and apply itto the…
