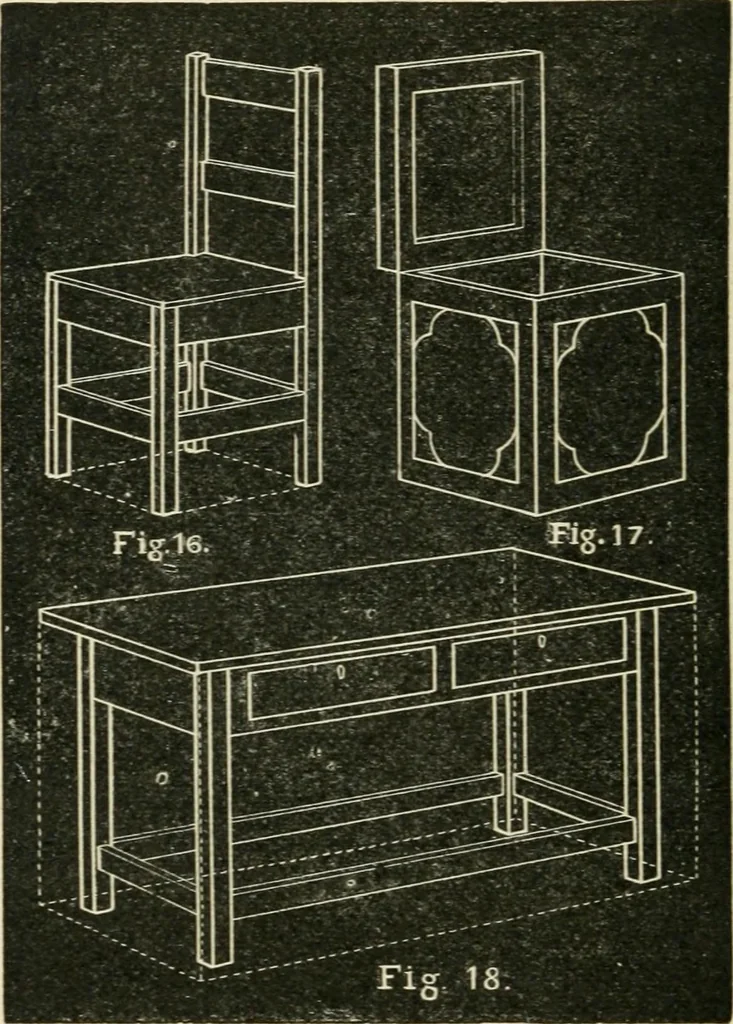

ance is to be madefor foreshortening. See pp. 255-2(50. Draw in the order ofthe numerals : 1 2 the nearest edge of the cube, 1 3 towardsthe right, and 1 5 towards the left; then 2 4 and 2 6 pointingupwards juore than 1 3 and 1 5, so as to make 3 4 shorter than1 2, though they are actually of the… … Chair, Box, and Table: Figs. 16, 17, 18. DmECTioxs FOR Figs. 1G, 17, and 18.—The cubes andparallelopipedon of the last exercises are converted into ob-jects of utility. Draw the cubes somewhat smaller than they-were dra^vn in the last exercise, but make the parallelo-pipedon of just the same size.…
Drawing
