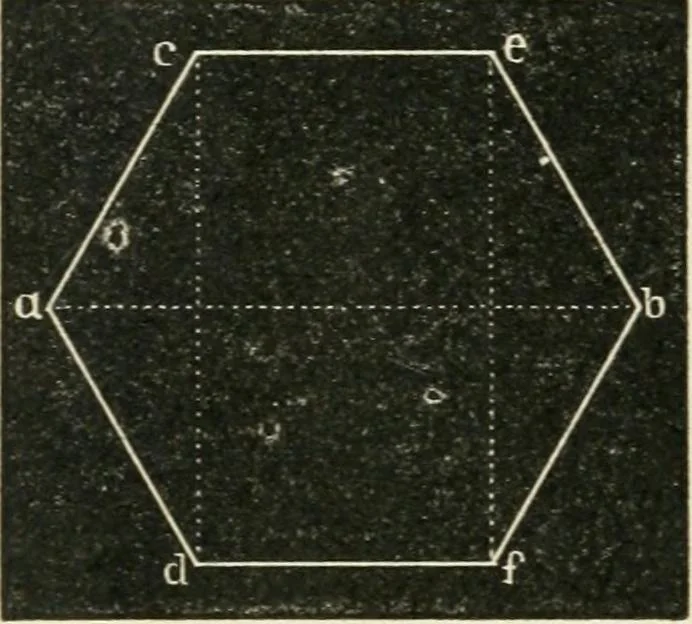

CISE VMI. The Hexagon, Directions.—Draw the horizontal line, nh, in the middleof the given space. Dividethis line into fonr equal parts.Through the outer points ofdivision, draw two verticallines, of indefinite length,ahove and below. Fix thepoints c and (/, hy juilginentofeye, so that the lines… … DRAWING-BOOK EXERCISE IX. The Octagon. Directions —Mark a point to indicate the centre of thespace given in the bcjok. Abovethis, about one-third of the dis-tance to the margin of the space,mark a second point, and a thirdone below. Through the outerpoints, draw two horizontal lines,ah and cd, of…
