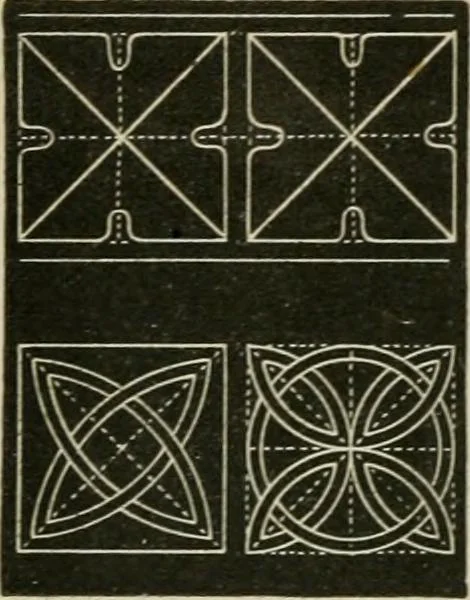

Card-Exercise XLII. Dog-tooth Moulding. — Interlacing Forms. Draw two squares, lying side by side horizontally,but not quite touching each other. Draw the diam-eters and diagonals ; add the slight indentations atthe ends of each diameter. Erase the diameters, and 104 TEACHERS MANUAL. … draw a parallel line above and below, as in othermouldings. Draw a square and its diag-onals. Cut off a trifle from theends of each diagonal. On eachside of what remains of eachdiagonal, as a base, draw asimple curve, having an alti-tude equal to one-third of thesemi-diagonal. Inside thesecurves,…
