Teachers' manual for freehand drawing in primary schools (1878)
Smith, Walter, 1836-1886 · Toronto : Adam Miller & co. · leaf 129

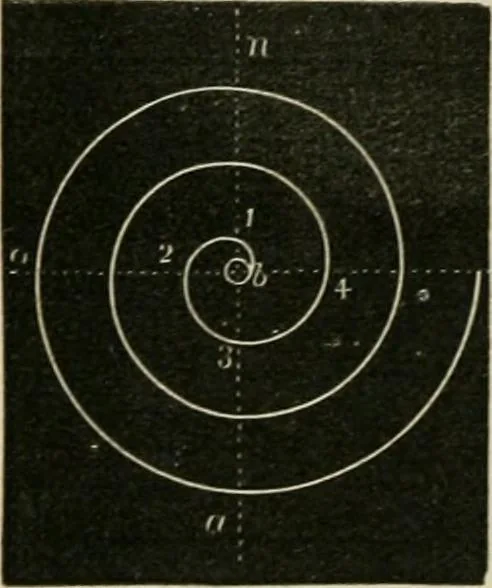

esent the end of a cylin-der or pencil. This cii-cle iscalled the eye of the spiral.Let the spiral begin on thehorizontal line at h, cross theI. vertical line above at 1, the horizontal line (left) at 2, the vertical line below at3, the horizontal line (right) at 4. The figures 1, 2,3, 4, indicate… … PRACTICAL DESIGN. 127 the part of the revolution accomplished. The dis-tance from i to 4 is, therefore, equal to the circum-ference of the circle, or would be in an actualillustration with a cylinder and cord. Before beginning to draw the spiral itself, nuirk onthe horizontal and vertical lines the…
Drawing
Internet Archive · University of Toronto Libraries · Public Domain Mark 1.0. Free to use for anything.
