The technic of mechanical drafting a practical guide to neat, correct, and legible drawing (1904)
Reinhardt, Chas. William (Charles William), b. 1858 · New York, The Engineering News Pub. Co. · leaf 38

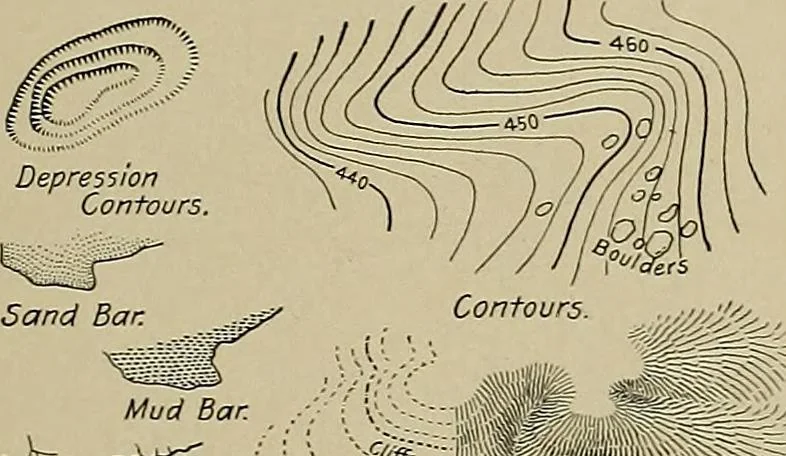

black. The built-up portions of cities can be shownin solid black, as also the single houses represented. Another group may here be mentioned. The vegetation, as woods, meadows, orchards,etc., may be indicatedby easily understoodconventions and tint-ed light green. Wherecoloring is not desiredthese… … Sand Bar. Mud Bar. Flat Rock. ~-W H limn nun uimut a Single Track.HIIIUIUIIIIIIIIIMIIIII Double Track. Railways. Macad. Road.Secondary Road ■;z;-_---j:z-t~------------ * Private or Farm Road. Trail Street Railway. ^f_ .,£ Ele voted Railway. Tunnel.…
