Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, Emanuel Anthony, 1858- · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 242

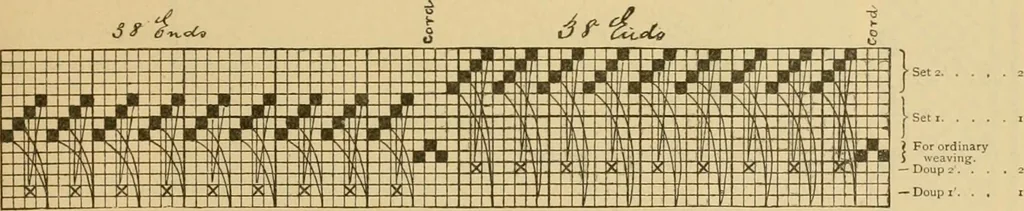

set indicatedby B represents the harness for raising warp-threads interlacing in the ordinary cloth; the setindicated by C represents the douping set of harness for producing the gauze part. Fig. 964 represents the harness-chain necessary for weaving a fabric as shown in Fig. 962. As previously… … Fig. 967. Diagram Fig. 965 illustrates a drawing-in draft arranged in this manner, and Fig. 966 showsa corresponding fabric. The interlacing of the plain for the ordinary interwoven part of the fabric can in this examplebe extended to any figured weave up to 16-harness. Four independent sets of…
Textile design · Textile fabrics
