Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, Emanuel Anthony, 1858- · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 50

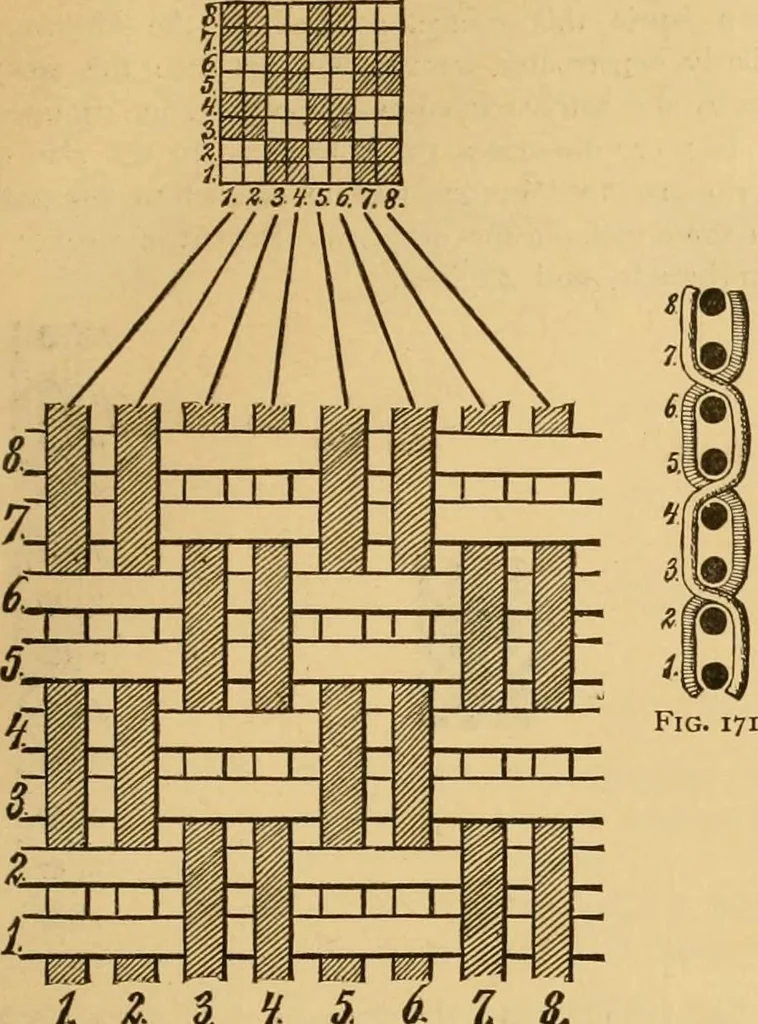

by the exchanging of two successive warp-threads with two successive filling-threads, alternately up and down; or an equalcombination of rib-weaves, Figs. 160 and 165. Fig. 169 illustrates this basket-weave, requiring for the repeat four warp-threads and four picks. Warp-threads 1 and 2 are the… … l 2. 3. 9. 5. Z £ Fu;. 170. threads working the same, and also illus-trates a combination of weaves, Figs. 164and 168. III.—Fancy Rib-Weaves. Warp Effects. The first step towards designing fancyrib-weaves is the combination of the regu-lar plain weave with its sub-division the common rib-weave.Fig.…
Textile design · Textile fabrics
