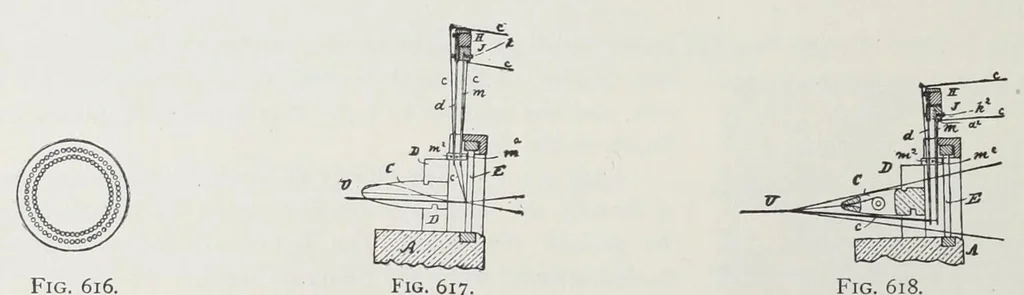

connecting the needle-bars with their actuating levers, and also the mechanism for actuating, the pattern-wheel being omitted in order to avoid confusion and to better illustrate the features shown in this figure. Like letters of reference indicate corresponding parts in the different figures of… … Fig. 616. Fig. 617. Fig. 618. The web U is ornamented by means of threads c, which pass from spools (not shown) mounted on the loom through the guides and thence respectively through the eyes of the needles d m and into the web. Guards are employed to prevent the needles from being sprung or drawn…
