Technology of textile design : being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving : containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1892)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : Sampson Low, Marston, Searle & Rivington, Ltd. · leaf 199

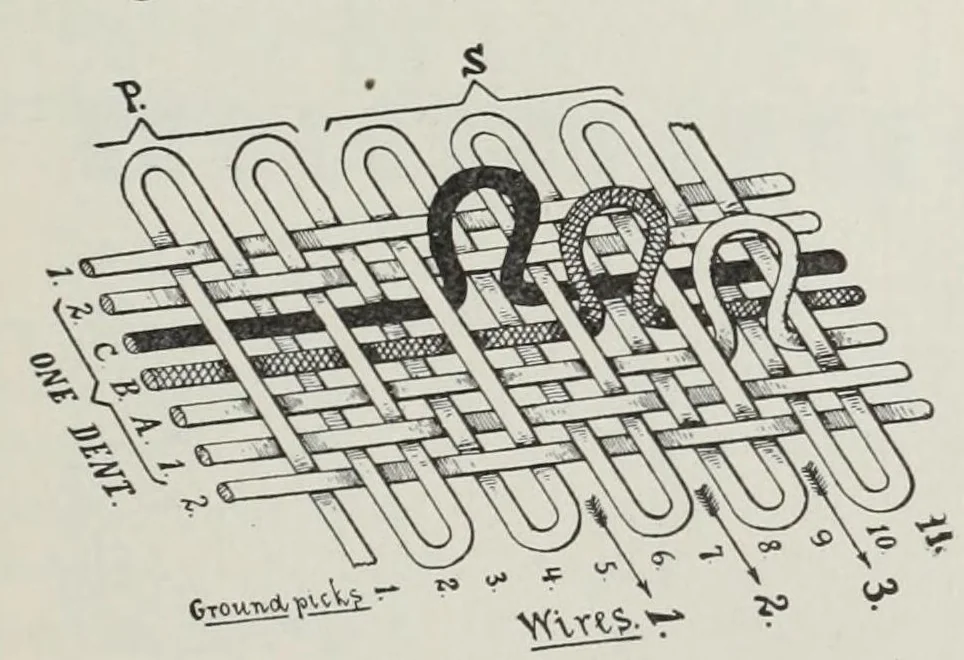

ys the two binder warp-threads. Fig. 840 illustrates the section of a 3-frame Brussels carpet. In the same, threads marked d and e represent the binder-threads. A, B, C, represent the 3 different colored pile warp-threads. Wires 1,2, 3, 4, 5,6, 7, illustrate the section of the wires as used in the… … Fig. 841. The binder-warp is drawn in two common harness frames which are placed in front of the Jacquard-harness. The face or pile is drawn in the Jacquard-harness, which is tied up for as many sections as there are frames in the carpet, so that in the present example of a 3-frame car- pet we must…
Textile design · Textile fabrics · Weaving
Internet Archive · Getty Research Institute · Public domain (published before 1931). Free to use for anything.
