An illustration from Technology of textile design : being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving : containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics, 1892, leaf 210

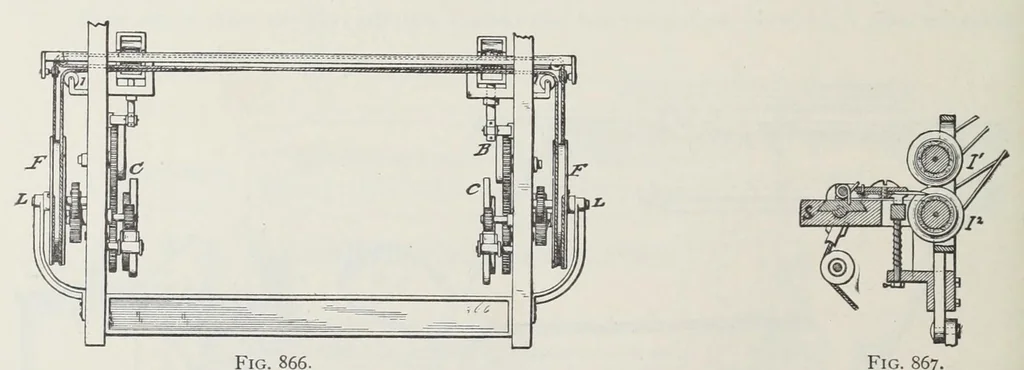

nts a side elevation of part of a loom for weaving double pile fabrics. The drawing also illustrates one of the " knife carriages " with its actuating mechanism, and part of the sharpening mechanism adjacent to it with a part of its actuating mechanism. Fig. 866 is a front view of part of the loom.… … Fig. 866. Fig. 867. Fig. 868 is, partly, a sectional front-view of a pair of the sharpening-roUers mounted in their frame with a portion of the velvet rail or cutting bar. Fig. 869 is a top-view of the transversely grooved guide-plate or race-bar in which the • knife-carriages are reciprocated, and…
