Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving. Containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1889)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 238

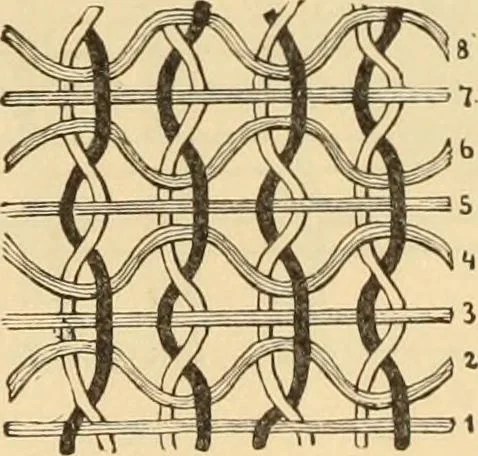

Fig. 956. Fig. 955. In diagram Fig. 953 the plan of another fancy gauze fabric, produced with two doups, isshown. Fig. 954 illustrates the method of drawing in the ground-harness and the threading ofthe doups, which in the present example is a right-handed and a left-handed doup for each set. A U)… … ► Fig. 957. Fig. 958. Four ground-harness are used in connection with the two doups. Ground-harness i and 2 {A)and doup i (Z?) equal 1st set; ground-harness 3 and 4 [A) and doup 2 (B) equal 2d set. Fig. 953 illustrates another fancy gauze fabric, produced with two se*J= of doups and upon ageneral…
Textile fabrics
