Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving. Containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1889)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 247

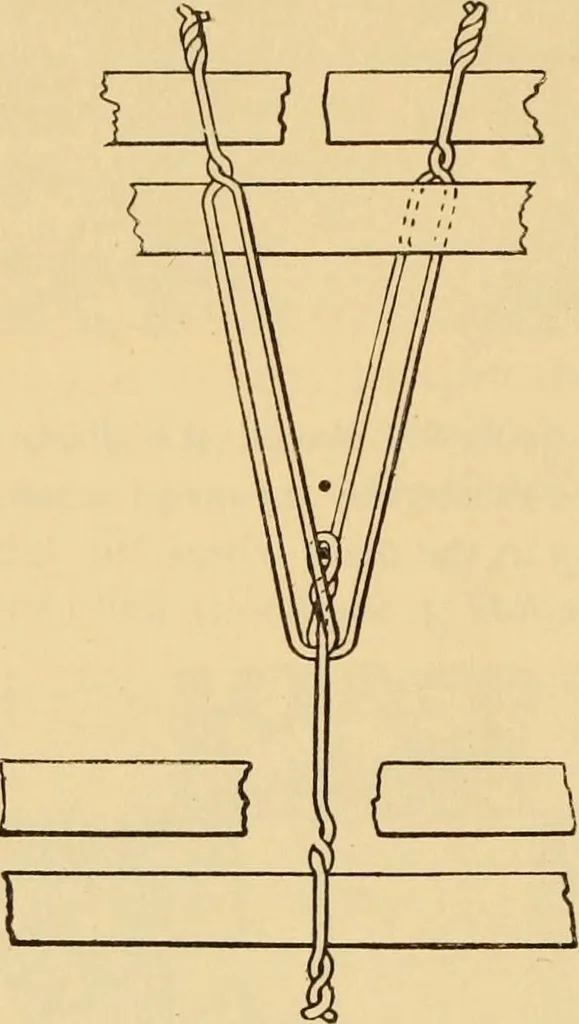

ly: R= rear-harness;(9= ground-harness; </= heddle for ground-warp; ^ =: heddle for whip thread; ^= passing ofthe whip-threads below ground-warp; /^ = doup-harness;/= doup. Whip-threads are shownin full black, ground-threads are shown outlined. Fig. 975 shows the corresponding crossing as…
Textile fabrics
