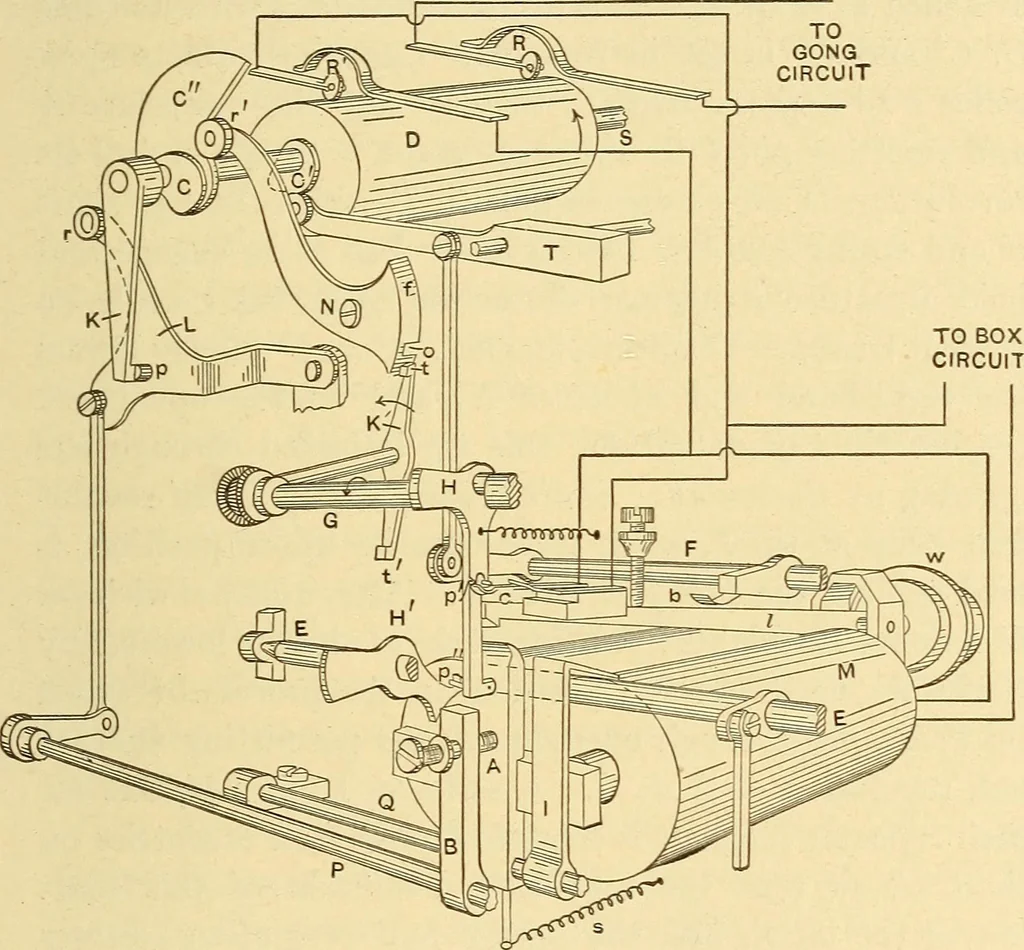

a Gamewell repeater will be under-stood by a consideration of Fig. 12, which shows the re-peating arrangement and one box-circuit magnet withauxiliary devices in the normal condition. The weight-driven transmitting cyHnder D is mounted eccentrically MUNICIPAL TELEGRAPHS 207 on shaft 5 so as to move… … Fig. 12. many contacts may be provided as there are gong andsignal-box circuits in the fire-alarm telegraph system.The transmitting cylinder makes one complete revolutionevery time a box circuit is opened. Shafts E, F, G, P andQ extend to the right in front of other repeater magnets,and carry…
