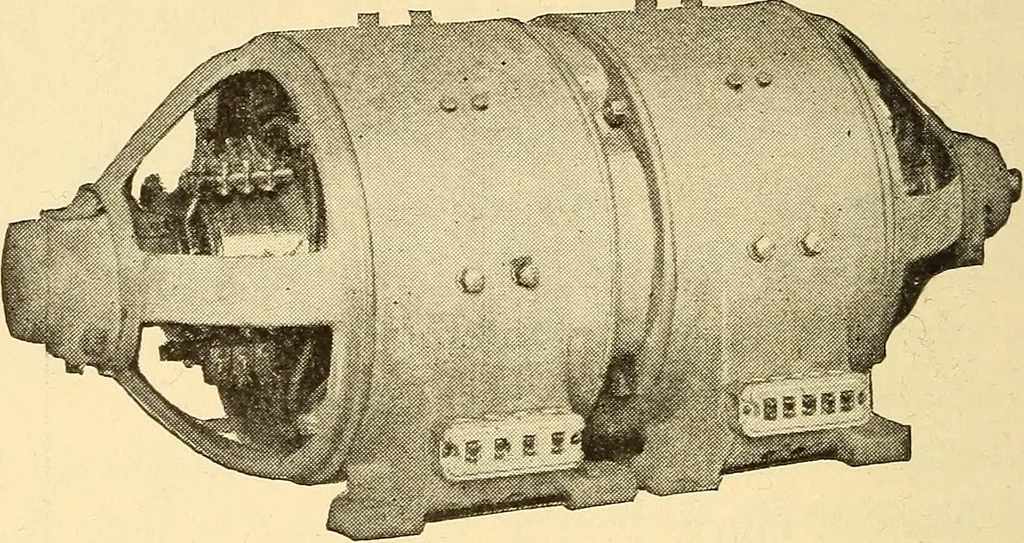

Fig. 15. with the latter company. The generators for the two highervoltages are generally duplicated so as to permit of re-versal of potential, as necessary in duplex and quadruplexservice (see Chapters II and III). With printing tele-graph systems no volts are generally used. … Fig. 16. The arrangement of generators at a telegraph office isshown in Fig. 15, the voltages indicated being those of thePostal Telegraph-Cable Company. Protective resistances,r, in series with each telegraph line, are used to prevent in-jury to the machines in case of short-circuits, etc. Fig. 16…
