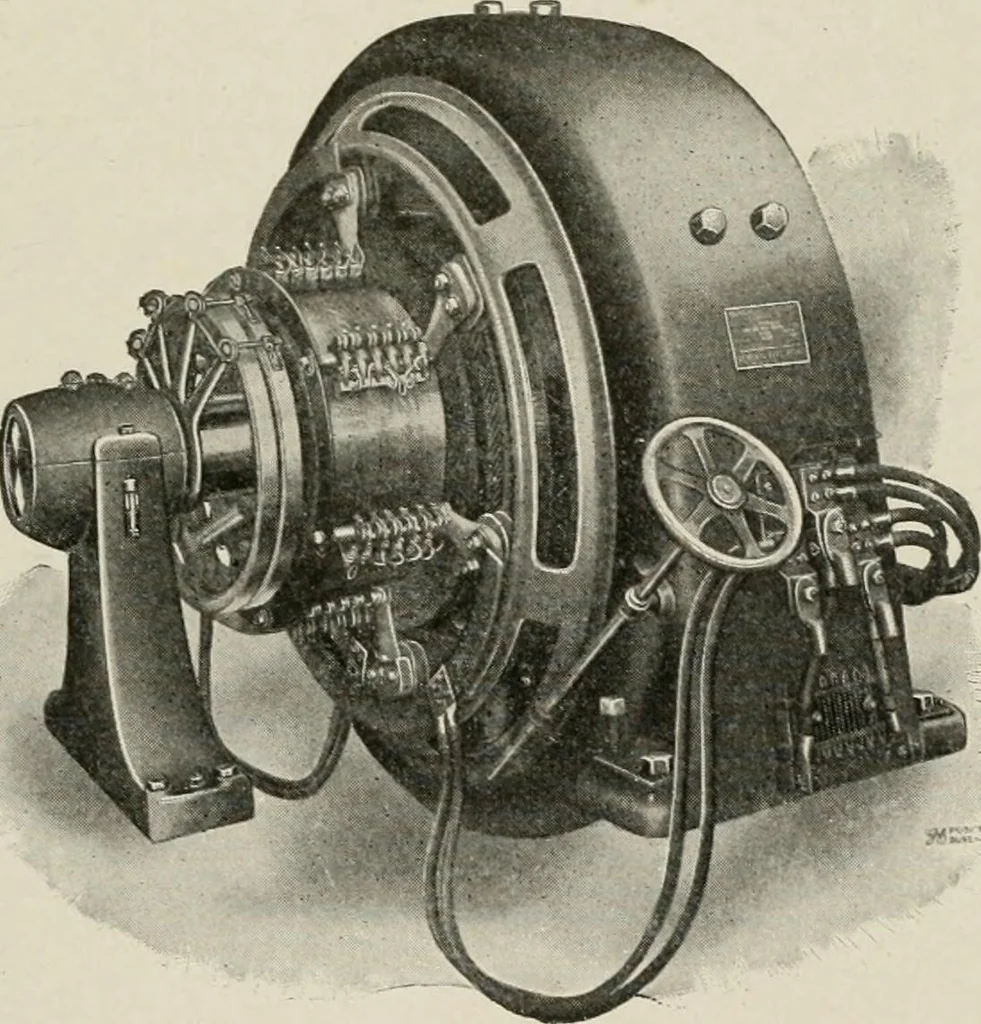

Fig. 52. Armature Magnet Frame and End Shield of D L C GeneratorCourtesy of General Electric Company Three-Wire Types. General Electric 250-volt generators be-come three-wire generators by adding two collector rings, mounted at … Fig. 5a. General Electric Three-Wire Generator the commutator end and connected to the proper points in the arma-ture winding. Machines of this type up to 200 kw. are illustratedin Fig. 53. The brush rigging for the collector rings is supported 289 44 TYPES OF GENERATORS AND MOTORS from the pillow…
