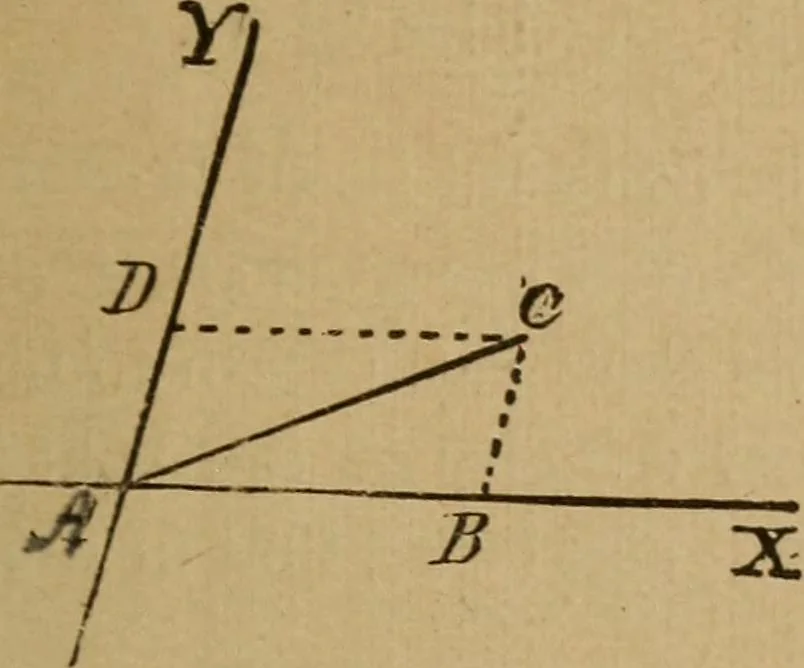

given, then their magnitude isfound by completing the parallelogram whose diagonalis the given resultant velocity and whose sides have thegiven directions. Let (Fig 15) misrepresent the resultant velocity, andlet ^lXand AY be the directions of the required com-ponents; draw through C the lines CD,… … jO. M JL Fig. 15. Fig. 16. If the directions AX and AY are at right angles(Fig. 16), and a represents the angle CAB, then thecomponents are AB = A0 cos a and AD = AC sin a. For example, suppose a boat to move uniformly in thedirection AC (Fig. 17) in yirtue of its own motion ^3 Fig. 17. directly…
