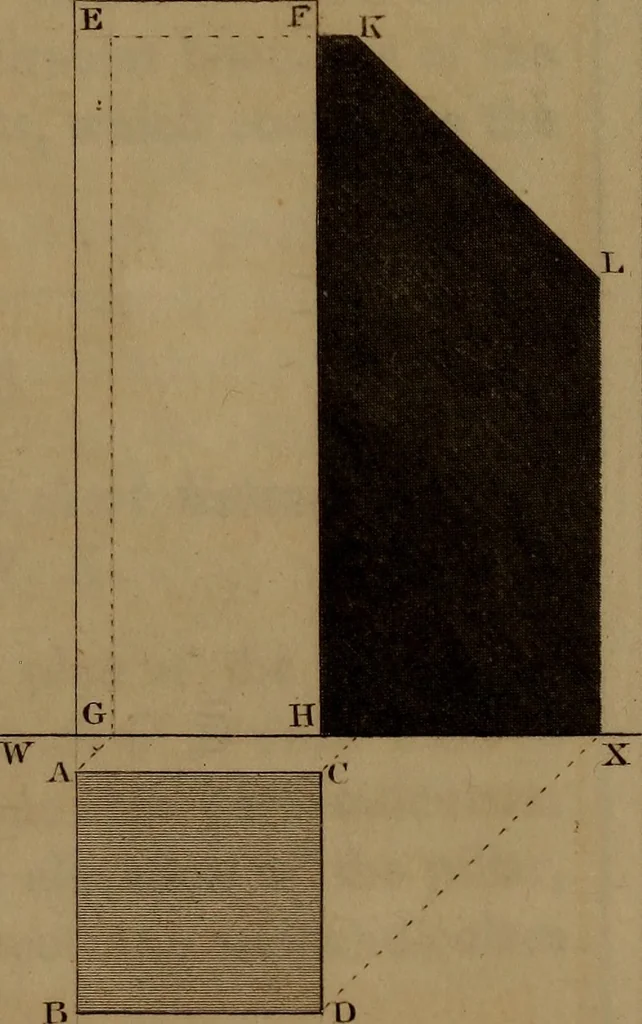

Fig.c … .-,■// A:-^ iz: PLATE XLVII. 141 Note.—^The tangent drawn at L and the curve of the shadowtouch the edge of the frame in the same spot, but if the propor-tions were different they would not do soj therefore it is alwaysbetter to draw the tangent. Figure 4 Is a Circular Stud representing an enlarged…
